Winchester Metal Garden Gate

Buy Online Today

Winchester Metal Garden Gate

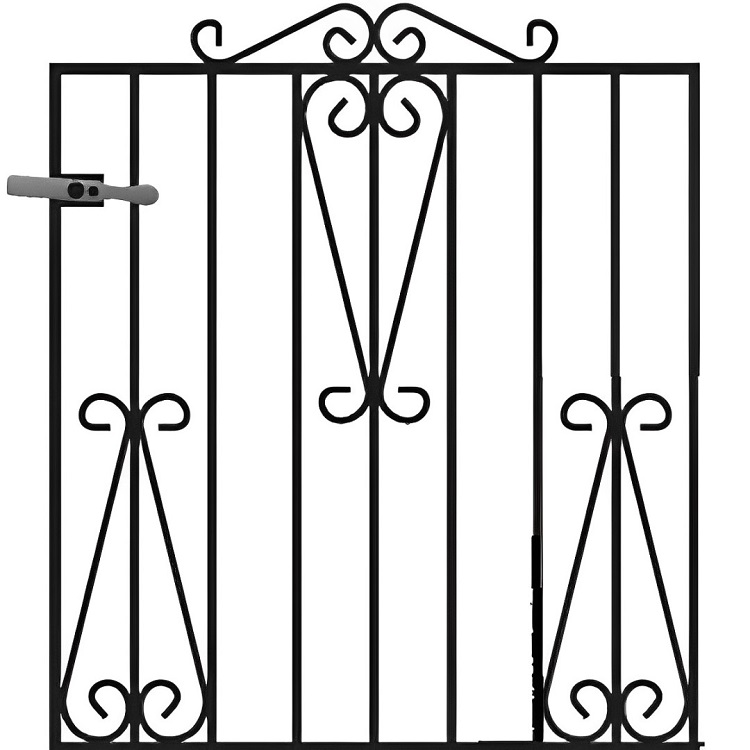

The Winchester Metal Garden Gate is perhaps our most traditional of designs and one of our most affordable options. It is handcrafted in the UK and includes numerous wrought iron style scrolls for a timeless appearance, a welded solid steel framework and is available in a choice of sizes to suit most residential applications.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Select the Size You Need:

Other Options & Accessories

Hinge Post:
Latch Post:

The Winchester Metal Garden Gate is available in various widths to suit many prevalent opening widths and represents excellent value for money. It features visually appealing wrought iron style scrollwork and sturdy construction to ensure years of reliable use. Handmade in the UK, this timeless metal gate design has a 20mm x 8mm frame, 10mm infill bars and 10mm x 3mm scrollwork making it both robust and attractive. It is ideal for any residential property where adding a cost-effective physical security barrier will be beneficial and is best suited to entrances to gardens, front pathways, or comparable places. The Winchester garden gate has a black primed undercoat and is ready to be painted before installation. It is perfect for DIY installation onto various surfaces, such as existing masonry structures or timber/metal posts.

3ft High Winchester Wrought Iron Style Garden Gate Specification

  • Time-honoured styling suits a variety of locations.

  • This product is manufactured in the UK by skilled craftsmen.

  • Constructed with a 20mm x 8mm framework, 10mm infill bars and 10mm x 3mm decorative scrolls.

  • Available in a variety of sizes.

  • The gate comes with surface-mounted adjustable hinges, a universal latch, and wall mounted receiver plate.

  • Suitable for hanging left or right-handed.

  • The steel surfaces are primed black with a factory-applied undercoat. To offer adequate protection against rust and corrosion, you will need to finish it with high-quality exterior paint before installation.


Height (once installed)

  • 920mm (3ft) + top scrolls



Ordering Sizes

  • Width (Fits Opening): These measurements correspond to the gap between your brickwork or posts and already incorporate the space required for the hinges and latch. You do not need to make further calculations or adjustments for these components.

  • Height (once installed): This is the distance from the ground to the top of the horizontal frame. It includes a clearance space at the bottom of the gate of 50mm (2 inches). The scrollwork above the top horizontal rail is not factored into this measurement.

Visit the measuring guide for help with ordering sizes

Example Ordering Size

If the gate is to be installed in an opening measuring 3ft, you must order the option "fits opening 3ft".

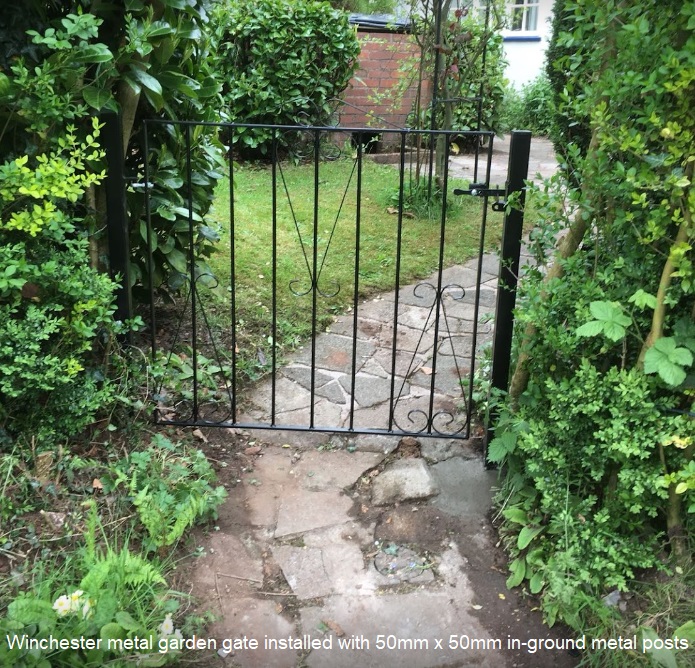

Do You Need Metal Posts?

You will need to install metal posts for those who don't have existing pillars, posts, or a wall to attach the hinges and latch components. These components take up more space, so you must consider this when placing your order.

Example: The total space required for a gate to "fit an opening" of 3ft and 2 x 2" posts is 3ft 4"



Are you Searching for Help & Guidance?

The wealth of information in our web store is available to help you make an informed, confident purchasing decision. We've prepared an easy-to-understand measuring guide, a buying guide, installation instructions, and FAQs. You can also contact us via the enquiry form if you want more details or have questions regarding this product.

Can`t find the size you need? Click here to learn more about our made to measure service

We also have many additional sections and help pages that you can access directly from the main menu. Some of our most popular support pages are below.



Important Points About the Winchester 3ft High Metal Garden Gate

Fittings: This product is supplied with hinges and latch components, but you'll need to source your own bolts or screws to fasten these components to your chosen support structure.

Metal Posts: To ensure the reliability and durability of your installation, you must ensure that your posts are the correct size and height. These components need to be fixed in the ground and strengthened with concrete.

Installation: Ensure that your structure can provide the necessary strength to ensure the product is securely mounted. Use fasteners appropriate for your application and follow the installation instructions included with the product.

Width: Please note that the "fits opening" dimension already includes the space needed for the hinges and latch. It does not denote the actual width of the framework of the gate. Check out our "How to choose" guide if you want further clarification.

Painting: The Winchester metal garden gate is factory primed with a black undercoat. To avoid rust and oxidation, you must paint all surfaces before installation. Please get in touch with us before completing your order if you prefer to upgrade to a low-maintenance electro-galvanised (zinc-plated) or black powder-coated paint treatment.

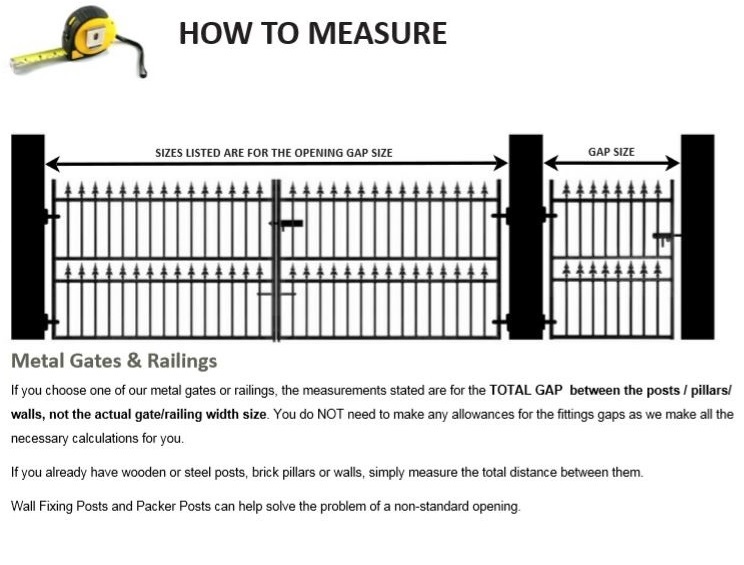

Discover how to measure the opening

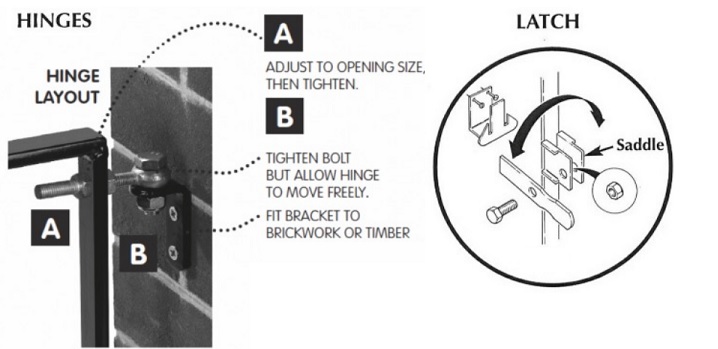

Adjustable hinges and latch fitting diagram



Need help with sizes? Go to the measuring guide

We understand that sometimes you need to order additional items, such as metal posts or want to specify the gate in a non-standard finish. Our customer service team are on hand to discuss your options and can make sure everything is taken care of.
