Winchester Metal Driveway Gates

Buy Online Today

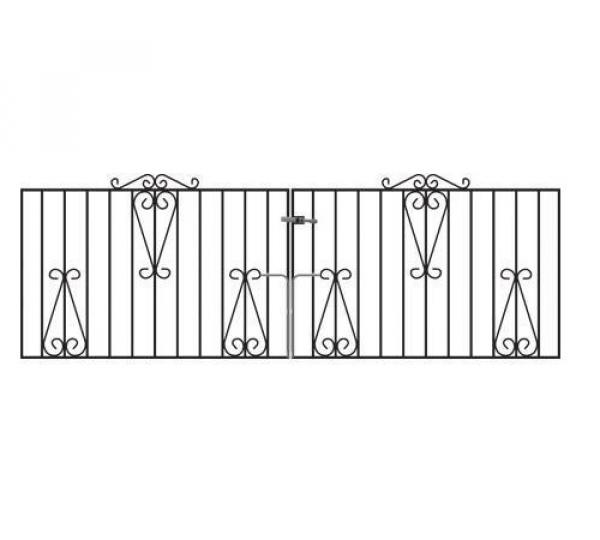

Winchester Metal Driveway Gates

The Winchester design is a popular option for homeowners looking to purchase a decorative pair of ornamental driveway gates at a very affordable price. They are handmade in the UK from solid steel components that feature traditional wrought iron style scrolls for improved aesthetic appeal.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Select the Size You Need (gates are sold as a pair):

Other Options & Accessories

Metal Posts (In Ground):

The Winchester Metal Driveway Gates are handmade in the UK to a high standard and are available to buy online to suit openings ranging from 7ft 6" - 12ft. They are built from solid steel components to provide a robust feel, whilst the decorative wrought iron style scrollwork adds a traditional design element. Suitable for various types of architecture, they will create a safe and secure entrance to your property at an affordable price.

Winchester Wrought Iron Style Double Metal Driveway Gates Specification

  • Winchester gates are suitable for many styles of property.

  • Available to buy online in a variety of sizes.

  • Manufactured in the UK to a high standard.

  • Double gates feature 20mm x 8mm frames, 10mm solid metal infill bars and 10mm x 3mm scrolls.

  • Supplied with adjustable hinges, latch and drop bolt.

  • Winchester driveway gates come in black primer ready for you to paint them to the colour of your choice before you install them.


Height (once installed)

  • 920mm (3ft) + top scrolls



Ordering Sizes

  • Width (Fits Opening): This refers to the opening size that the gates will fit into (including the space required for the hinges and latch). You do not need to make any other allowances. To avoid any confusion, this means that if your brickwork opening size is 10ft, you should order the gates to "fit opening 10ft".

  • Height (once installed): This measurement includes an allowance of 50mm (2") for ground clearance and is measured from ground level to the top horizontal frame. The scrollwork above this has not been included.

View the measuring guide here

Do You Require Metal Posts?

If you are not installing between existing brickwork or other support structures, metal posts will be required. Please remember that you will need additional space for the posts, so make sure this is factored in when placing an order.

Example: Winchester double metal gates that "fit an opening" of 8ft 6" combined with 2 x 2" posts will require a total overall space of 8ft 10".



Looking for Advice Before Ordering?

If you need more information before placing your order, we have lots of helpful information pages online you can view. Our most popular pages are the Buying GuideOrdering GuideFAQ and Installation Guide. Alternatively, please get in touch if you can't find the information you are looking for, and we will be on hand to offer support.

Find out about our made to measure gates by clicking here



Useful Information About the Winchester 3ft High Driveway Gates

Fittings: Each pair of gates includes the surface-mounted hinges, latch fitting and drop bolt. Screws to attach the hinge brackets to your brickwork or posts are not included.

Posts: Any metal posts used during installation must be of the correct size to provide the required level of support. They should be set into the ground and supported with concrete.

Installation: You must only fix the hinges to existing brickwork (or other support structure) provided it can sufficiently support the weight of the gates. For more information, please take a look at the installation guide.

Width: As detailed above, this is the width of the opening you will need to have. It is not the physical width of the gates. For clarity, please click here.

Painting: Winchester wrought iron style driveway gates are primed black (undercoat). You must paint all metal surfaces before you complete the installation to ensure the proper level of protection against rust and corrosion. Alternatively, please get in touch if you want to upgrade to our low maintenance zinc plated (electro galvanised) and black powder-coated paint finish. We will be happy to provide you with the additional costs involved.

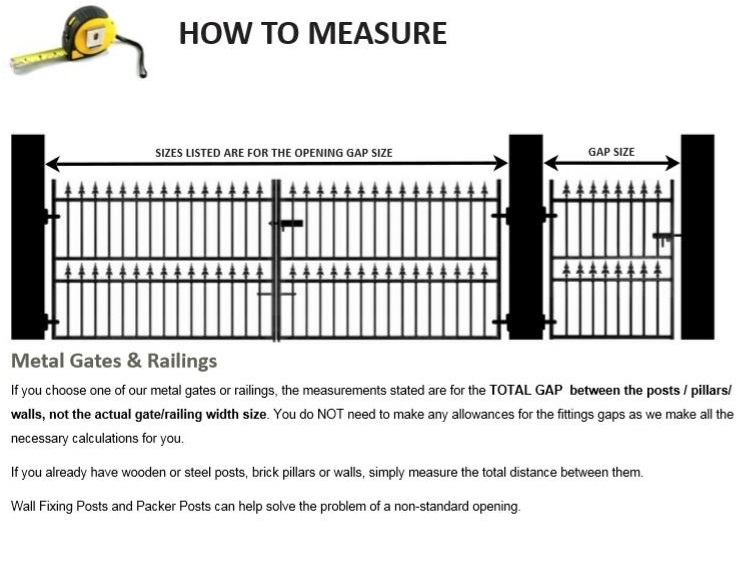

Details of how to measure the opening

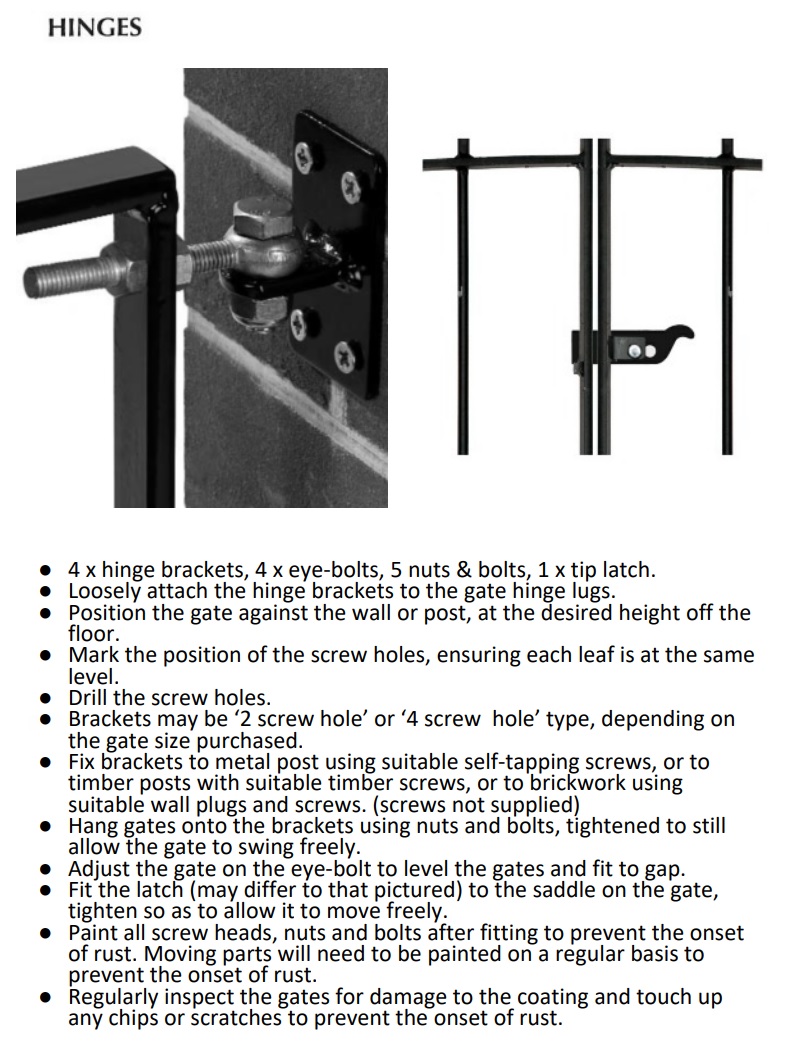

Illustration showing adjustable hinges for double driveway gates


For more information about size please view the measuring guide

We can offer you the following optional extras to complement these beautiful double gates.

  • Zinc-plated (electro-galvanized) and powder-coated paint finish.

  • Wall-mounted metal posts (for attaching to existing brick pillars)

  • In-ground metal posts (for concreting into the ground)

Please email or fill in our enquiry form online to find out more details or the additional costs.
