Marlborough Arched Metal Garden Gate - 4ft High

Buy Online Today

Marlborough Arched Metal Garden Gate - 4ft High

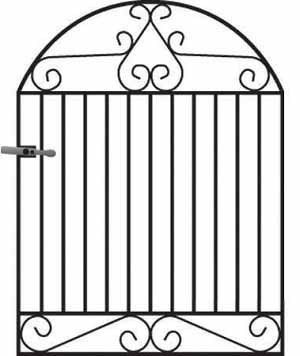

The Marlborough Arched Metal Garden Gate will make an excellent addition to any pedestrian entrance. Constructed from high-quality solid steel, it incorporates a welded framework, timeless curved top profile and attractive metal scrollwork at the top and bottom. Primed black during manufacture, you can paint it to the colour of your choice before installation, allowing you to create the ideal match to your existing garden aesthetic.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Select the Size You Need:

Other Options & Accessories

Hinge Post:
Latch Post:

The Marlborough 4ft high Arched Metal Garden Gate is a great way to safeguard any pedestrian entry point on your property. The gate, which has a wrought iron style appearance, is expertly manufactured in the UK, comes in various popular sizes to fit many standard opening widths and is terrific value for money. It has a robust steel structure that comprises of a 20mm x 8mm welded framework, 10mm metal infill bars, and 10mm x 3mm decorative scrolls. It is ideal for installing onto various surfaces such as masonry, timber, or metal posts because it has a set of surface-mounted hinges and a universal latch mechanism included as standard. The gate has a black-primed surface ready to be painted with the colour of your choice before installation.

Marlborough Bow Top Wrought Iron Style Garden Gate Specification

  • Attractive arch top design.

  • Perfect for a variety of residential applications around the home and garden.

  • 20mm x 8mm metal frames and 10mm infill bars.

  • Visually appealing 10mm x 3mm scrollwork creates a timeless appeal.

  • Handmade in the UK to a high standard.

  • This product includes surface-mounted adjustable hinges and a universal latch mechanism to enable easy DIY fitting onto various surfaces.

  • Suitable for left or right-hand hanging.

  • The gate is primed with black undercoat paint, ready for finishing in the colour of your choice before installation.


Height (once installed)

  • 1220mm (4ft)



Ordering Sizes

  • Width (Fits Opening): The gap size needed between your brickwork and posts is the "fits opening" dimension. The space required for the hinge and latch elements is already factored into this measurement. You don't need to complete additional calculations to account for these parts.

  • Height: This is the distance measured from the ground to the top of the arch. The dimension includes a 50mm (2") space for ground clearance.

Refer to the measuring guide if you are confused about ordering sizes

Example Ordering Size

You must pick the option from the drop-down menu that reads "fits opening 1070mm" if the spacing between the walls is 1070mm.

Do You Require Metal Posts?

In the absence of a support structure, you will need to install metal posts. Please note that these components will require extra room, so kindly check that this is achievable before submitting your order.

Example: A total width of 1170mm is required when ordering a gate to "fit an opening of 1070mm" and 2 x 50mm posts.



Do You Need More Information & Guidance?

We understand that choosing the appropriate size might be daunting. However, the process is clearly explained if you refer to our easy-to-understand measuring guide. Alternatively, we provide additional support within the buying guide, installation instructions, and FAQ sections. If you cannot find the information you need, please use the enquiry form to get in touch with us.

A made to measure service is available - Click here for full details

On our website, we also offer a lot of informative articles. Here are a few of our customer's favourites from our support pages.



Important Information Regarding the Marlborough Arched Metal Garden Gate

Fittings: We provide two surface-mounted adjustable hinges, a universal latch mechanism, and a receiver plate for mounting on posts or walls. To attach these components to your chosen surface, you must buy the proper screws.

Metal Posts: If you need to buy metal posts, pick the right kind for your installation. If you use in-ground posts, position them at the proper depth and apply concrete to anchor them.

Installation: Before you start the installation, be sure the structure to which you are attaching the fittings can give the necessary support. Follow the instructions supplied with the product when fitting the gate, and use the correct screws to fasten the hinge and latch elements.

Width: The measurements for "fits opening" display the dimensions of the opening or gap that must exist for the gate to fit. Included in these dimensions is the room required for the hinges and latch. It is not the physical width of the gate alone. Read our in-depth discussion on choosing the proper size if you still need clarification about what this means.

Painting: Your Marlborough arched garden gate must be painted before installation to prevent rust and corrosion of the steel. Alternatively, for an additional charge, you can upgrade to an electro-galvanized (zinc-plated) and black powder-coated paint finish.

Measuring guide diagram


Hinge and latch layout diagram



Go to the measuring guide if you need help choosing the appropriate size.

You will need to acquire metal posts if the gate is installed in a location without a wall or other suitable structure. In these situations, please select from the choices available in the product menu.
