Sussex Aluminium Driveway Gates | Arch Top & Long Open Pales

Buy Online Today

Sussex Aluminium Driveway Gates | Arch Top & Long Open Pales

To meet the needs of most residential properties, the Sussex Arched Top Aluminum Driveway Gates are available to purchase online in many width and height variations. They are easy to maintain, benefit from a hard-wearing powder coat paint, have an elegant arched top, and include long open pale segments for added visual appeal. Easy to install, they will provide your home with a stunning and functional entrance that your guests are sure to love.

Ordering Sizes

To select the size you need, choose from the width and height combinations shown in the drop-down menu. When making your selection, you must understand that the width dimensions displayed refer to the physical size of a pair of gates. These measurements do not include the additional space needed for the hinges, lock or posts. We have included a table in the product description below, highlighting the actual opening size you need.

Please allow approximately 3 - 4 weeks lead time for delivery of this product.

Select the Size You Need (gates are sold as a pair):

Other Options & Accessories

Select the Colour:
Do You Need a Factory Fitted Handle & Lock?:
Do You Need a Drop Bolt?:
Do You Need Posts?:

The Sussex Arched Top Aluminium Driveway Gates feature an elegant arch top, long open pale sections and vertical infill boards in the bottom portion and will add valuable privacy and security to the main entrance of your property at a very affordable price. The gates benefit from a complete aluminium construction which is lightweight yet extremely strong and durable. They are available online in sizes to suit most domestic applications and can be mounted directly to existing brickwork and masonry walls or aluminium posts. The Sussex design is suitable for manual or electric opening and closing, includes surface-mounted hinges as standard and can be ordered in a choice of black or anthracite grey colours and can be specified with a range of optional extras to enhance usability further.

Sussex Aluminium Driveway Gates Specification

  • An elegant arch top and long open pale sections provide heightened aesthetic appeal.

  • The high-quality aluminium construction is strong and durable.

  • Select from contemporary Anthracite Grey or traditional Black powder-coated colour options.

  • Unlike conventional timber designs, they are incredibly stable as aluminium does not swell due to moisture content.

  • Available to order online in a choice of width and height combinations.

  • We include easy-to-install surface-mounted adjustable hinges that are compatible with masonry, timber or aluminium posts

  • The gates include 4 x wall-mounted hinges and 2 x floor-mounted hinges as standard.



Ordering Sizes

The width dimensions denote the physical size of a pair of gates (placed side by side). You will need additional space for the hinges, lock and posts (if used). The height measurements are from the underside of the gates to the highest point. They do not account for ground clearance or the extra space needed for the top and bottom hinges.

Please refer to the chart below to fully understand the opening size you will need between your brickwork or posts.

Opening Size Requirements

Aluminium driveway gates opening size requirements diagram

If you do not see your size, please let us know. We can work with you to find a solution.

Physical Width = 3000mm

The opening should measure 3030mm - 3060mm between your walls or posts

Physical Width = 3250mm

The opening should measure 3280mm - 3310mm between your walls or posts

Physical Width = 3500mm

The opening should measure 3530mm - 3560mm between your walls or posts

Physical Width = 3750mm

The opening should measure 3780mm - 3810mm between your walls or posts

Physical Width = 4000mm

The opening should measure 4030mm - 4060mm between your walls or posts

Height Dimensions

You will require the walls or posts to be at least 100mm higher than the physical height of the gates. You must ensure that this is obtainable to have adequate space to attach the top and bottom hinges.

Please note that the physical height of the gates at the sides is 200mm shorter than the measurement at the arch's top.



What is Included with the Double Gates as Standard?

4 x Wall Mounted Adjustable Hinges

2 x Floor Mounted Hinges


Do you Need to Buy Aluminium Posts?

If your driveway entrance does not have suitable existing masonry support, you will need to install aluminium posts. These components can be bolted onto an existing hard surface or may be sunk into the ground and supported by concrete.


To ensure that the aluminium posts can sustain the weight of the gates, they have a 3.5mm thick profile. They are available in black or anthracite grey and include a black post cap to help keep water out.


Confused About Ordering Sizes?

Don't hesitate to contact us using our online enquiry form if you require help or advice selecting the appropriate size to suit your opening requirements.



Installation Instructions

To understand how to fit the gates, please review the installation instructions we provide using the links below.

How to Install onto Brickwork ►

How to Install onto Posts ►

How to install aluminium driveway gates to brickwork How to install aluminium driveway gates to posts



Important Delivery Information

Our standard delivery charge only covers properties located in England and Wales. If you reside in Scotland, delivery surcharges will be applicable. Should this apply to you, please get in touch with us before placing your order, and we will advise the additional costs

Colour Chart

Colour chart

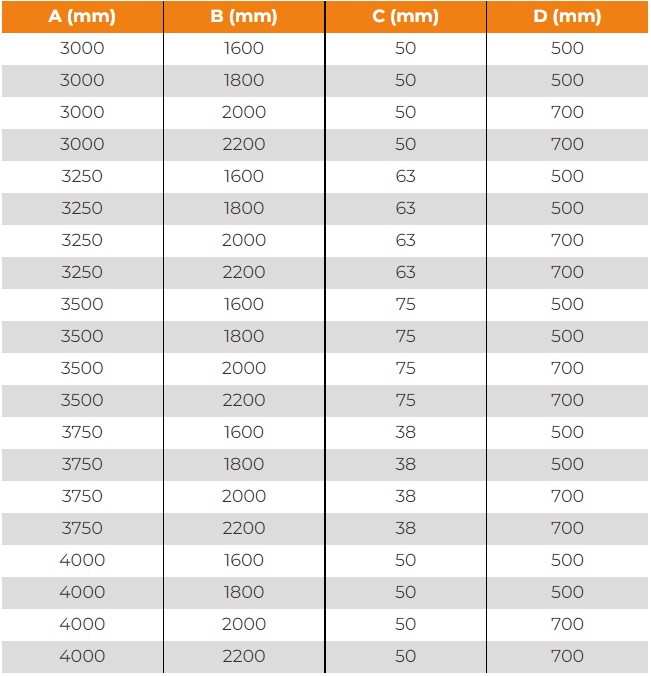

Component Sizes

Sussex design component sizes

Component sizes for Sussex gates
