Kensington Aluminium Driveway Gates | Horizontal Infill

Buy Online Today

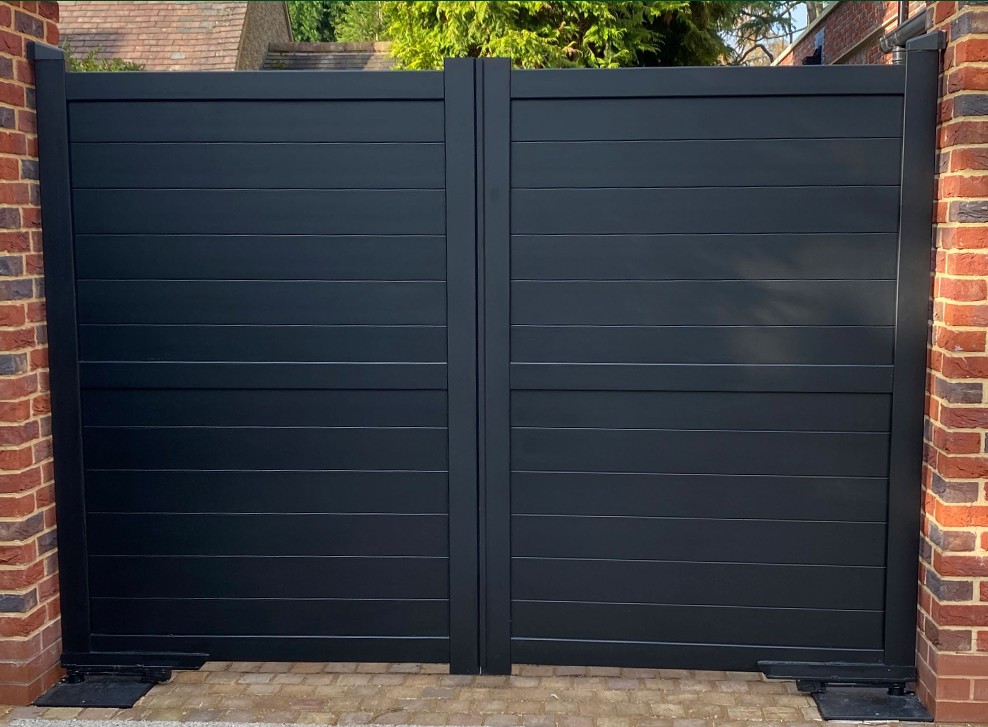

Kensington Aluminium Driveway Gates | Horizontal Infill

The Kensington Aluminium Driveway Gates with horizontal infill boards will provide a modern, practical, and cost-effective option to safeguard your property's principal vehicle access point. They are readily accessible online in width and height variants to suit your requirements and will provide you with extra security and privacy benefits, making them a fantastic addition to any home.

Ordering Sizes

The dimensions in the drop-down menu show the physical width and height of the gates; thus, it is essential to recognize that further clearance is required to accommodate the hinges and locking mechanism. To calculate the precise gap size between your brickwork, posts, or other support structure, please refer to the table below in the product description before completing your order.


Please allow approximately 3 - 4 weeks lead time for delivery of this product.

Select the Size You Need (gates are sold as a pair):

Other Options & Accessories

Select the Colour:
Do You Need a Factory Fitted Handle & Lock?:
Do You Need a Drop Bolt?:
Do You Need Posts?:

The Kensington Aluminium Driveway Gates are a contemporary design that will suit many modern property types. They include a horizontal infill panel and will make an impressive style statement at any driveway opening. The gates are available online in a variety of sizes to suit your needs, feature a durable construction, provide tremendous privacy and security, require minimal maintenance, and have a resilient powder-coated paint finish. They come complete with 4 x wall-mounted adjustable hinges and 2 x floor-mounted hinges, enabling you to decide on the installation approach that best matches the arrangement of your opening. Furthermore, to enhance the gates, various accessories are also available.

Kensington Aluminium Driveway Gates Specification

  • This modern style is suitable for most types of property.

  • They are perfect for anyone looking for a premium product at an affordable price.

  • They have a sleek, contemporary design and are available in two different colours.

  • They will not twist or deform, so you can rely on them to secure your property.

  • The aluminium construction is strong, durable, and rust-proof.

  • The gates are easy to install and robust enough to deter most unwanted visitors.

  • Aluminium is the ideal moisture-resistant alternative to wood for coastal homes or other settings with a lot of salt contamination.

  • Driveway gates come in a variety of width and height configurations.

  • Black or anthracite grey paint with a durable powder coating looks beautiful and gives resistance to abrasion.

  • Adaptable for electric and manual closing and opening (the handle and lockset must be specified when ordering manual gates).

  • You can fix the hinges directly to a wall or onto aluminium posts.

  • Because the hinges are adjustable, you may make minor adjustments to ensure the gates remain level.



Ordering Sizes

The measurements listed in the drop-down option correspond to the total physical width of the two gates together. The height is calculated by measuring the distance between the top and bottom of the vertical rails. The extra space necessary for the hinges, locking mechanism, and ground clearance has yet to be taken into consideration.

Please use the table below as a guide to calculate the right gap size between your masonry walls or support posts.

Opening Size Requirements

Aluminium driveway gates opening size requirements diagram

If you do not see your size, please let us know. We can work with you to find a solution.

Physical Width = 3000mm

The opening should measure 3030mm - 3060mm between your walls or posts

Physical Width = 3250mm

The opening should measure 3280mm - 3310mm between your walls or posts

Physical Width = 3500mm

The opening should measure 3530mm - 3560mm between your walls or posts

Physical Width = 3750mm

The opening should measure 3780mm - 3810mm between your walls or posts

Physical Width = 4000mm

The opening should measure 4030mm - 4060mm between your walls or posts

Height Dimensions

The wall or posts on which you mount the hinges must be at least 100mm taller than the physical height of the gates. This gives enough room for the fittings to be installed at the top and bottom.



What is Included with the Double Gates as Standard?

4 x Wall Mounted Adjustable Hinges

2 x Floor Mounted Hinges


Do you Need to Buy Aluminium Posts?

We know that every space is different and every client has different requirements. That's why our post system has a base plate so you can connect it to your existing concrete or other hard surfaces. If you prefer, you can also bury the posts in the ground and reinforce them with concrete.


Our aluminium posts are available as a free-standing option for extra strength and weight capacity. They are produced from a 3.5mm thick profile to guarantee that they can handle the weight of the gates. They come with a black post cap to keep moisture out and are available in the same colour as the gates you select (black or anthracite grey).


Confused About Ordering Sizes?

If you are unsure what size to purchase, please contact us before placing your order, as it will be costly to have the gates remade.​

Made to measure sizes are available



Installation Instructions

We recommend you follow the steps described in the instructions for a flawless installation.

How to Install onto Brickwork ►

How to Install onto Posts ►

How to install aluminium driveway gates to brickwork How to install aluminium driveway gates to posts



Important Delivery Information

If you live in mainland England and Wales, the delivery charge will be displayed to you in the checkout section of the website once you have added the item to your basket. If you live in Scotland, please note that delivery surcharges will apply (this will vary according to your postcode); therefore, please get in touch with us before ordering.

Colour Chart

Colour chart

Component Sizes

Kensington design component sizes

Sizing diagram for horizontal inflll
