Surrey Aluminium Driveway Gates | Vertical Infill

Buy Online Today

Surrey Aluminium Driveway Gates | Vertical Infill

The Surrey Aluminium Driveway Gates with vertical infill boards will offer a contemporary, practical, and cost-effective solution to secure your property's main vehicle entrance point. They are available online in various width and height configurations to meet your needs and will provide you with good security and privacy benefits, making them an excellent addition to any residence.

Ordering Sizes

The measurements indicated in the drop down menu depict the physical width and height of the gates; consequently, it is important to recognise that additional clearance is required to accommodate the hinges and lock. Before making your purchase, please refer to the table below in the product description to determine the specific gap size you will require between your brickwork, posts, or other support structure.


Please allow approximately 3 - 4 weeks lead time for delivery of this product.

Select the Size You Need (gates are sold as a pair):

Other Options & Accessories

Select the Colour:
Do You Need a Factory Fitted Handle & Lock?:
Do You Need a Drop Bolt?:
Do You Need Posts?:

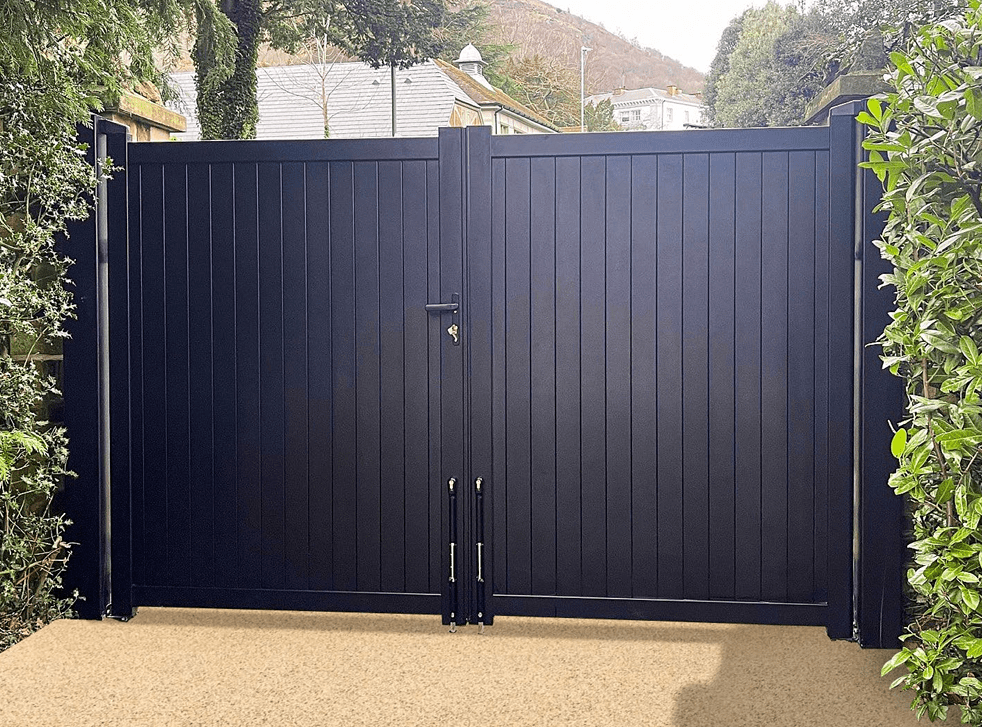

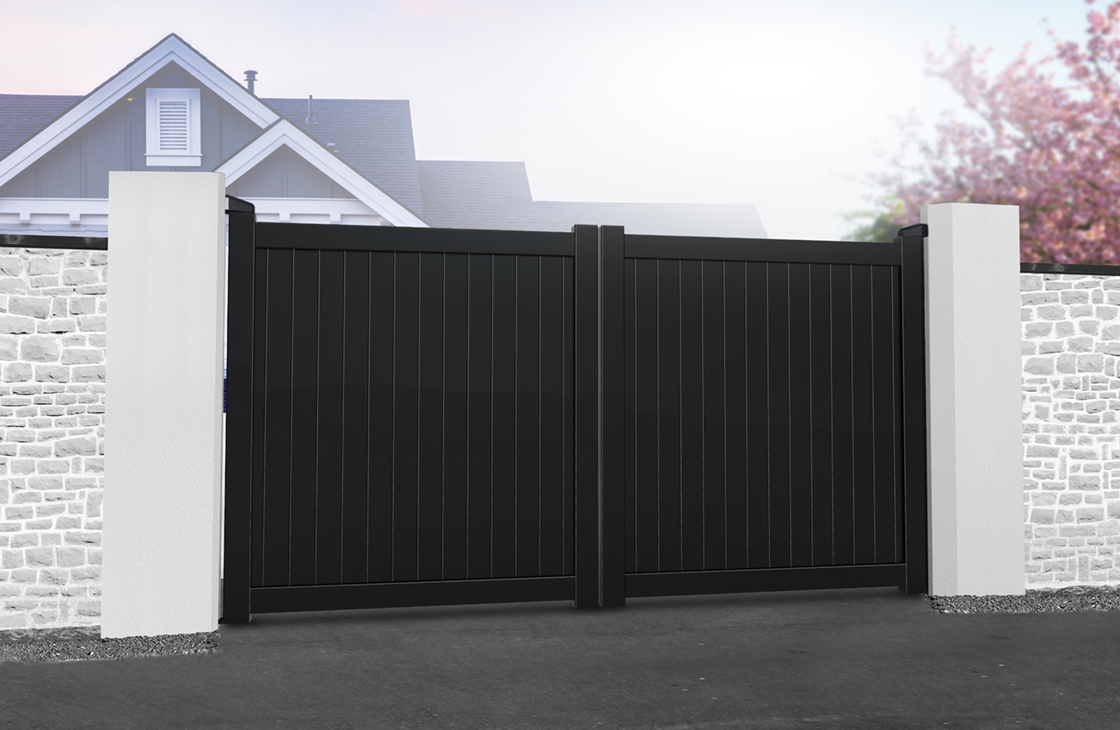

The Surrey Aluminium Driveway Gates are a modern interpretation of a classic design. They are composed of low-maintenance aluminium and feature a vertical infill panel and horizontal top rails for a simplistic yet desirable overall appearance. For any driveway entrance, they will provide a powerful visual statement. The gates have a sturdy infill panel, offer significant privacy and security, require little upkeep, have a durable powder-coated paint finish, and are available online in an assortment of sizes to meet your needs. As standard, they come with 4 x wall-mounted adjustable hinges and 2 x floor-mounted hinges, allowing you to select the installation option that best suits the configuration of your aperture. Additional accessories are also available to complement the gates.

Surrey Aluminium Driveway Gates Specification

  • Most property types can benefit from this contemporary design. It is suitable for individuals seeking a high-quality product at a reasonable cost.

  • They come in two distinct colours and has a streamlined, modern appearance.

  • You can depend on them to protect your property because they will not twist or distort.

  • The aluminium composition is lightweight, sturdy, and rust-proof.

  • The gates are simple to install and tough enough to keep out the majority of trespassers.

  • Aluminium is a moisture-resistant substitute for wood that is perfect for coastal homes or highly salt-affected environments. Because of its longevity, it is ideal for any property.

  • You may purchase driveway gates in a range of width and height combinations.

  • A hardwearing powder-coated black or anthracite grey paint finish looks great and offers resistance and resistance to abrasion.

  • Suitable for manual and electric opening and closing. When selecting manual gates, you must specify the handle and lockset when ordering.

  • They can be mounted directly to a wall or on aluminium posts.

  • As the hinges are adjustable, you to make minor adjustments at any time.



Ordering Sizes

The dimensions provided in the drop-down menu refer to the combined physical width of the pair of gates. The height is measured from the top to the bottom of the vertical rails. The additional space required for the hinges, locking mechanism and ground clearance has yet to be accounted for.

Please use the guide below to determine the correct gap size that you will require between your masonry walls or support posts.

Opening Size Requirements

Aluminium driveway gates opening size requirements diagram

If your opening width does not fall into any of the size bandings shown below, you will require a made-to-measure size. In these instances, please get in touch with us to obtain a quote.

Physical Width = 3000mm

The opening should measure 3030mm - 3060mm between your walls or posts

Physical Width = 3250mm

The opening should measure 3280mm - 3310mm between your walls or posts

Physical Width = 3500mm

The opening should measure 3530mm - 3560mm between your walls or posts

Physical Width = 3750mm

The opening should measure 3780mm - 3810mm between your walls or posts

Physical Width = 4000mm

The opening should measure 4030mm - 4060mm between your walls or posts

Height Dimensions

The wall or posts must be at least 100mm taller than the physical height of the gates you purchase. This ensures enough room is available to accommodate the top and bottom hinges.



What is Included with the Double Gates as Standard?

4 x Wall Mounted Adjustable Hinges

2 x Floor Mounted Hinges


Do you Need to Purchase Aluminium Posts?

Please be aware that blank posts can be ordered if you need to provide support. This gives you the freedom to attach fittings wherever it best fits your needs. Each post has a base plate to make it easy to connect to existing concrete or other hard surfaces. Conversely, you can bury the posts in the ground and reinforce them with concrete.


The aluminium posts are produced from a 3.5mm thick profile to guarantee that they can handle the weight of the gates. They come with a black post cap to keep moisture out and are available in the same colour as the gates you select (black or anthracite grey).


Confused About Ordering Sizes?

If you are unclear about what size to get or want assistance and guidance, please contact us before ordering the gates, as selecting the wrong size will be costly and time-consuming to repair.

Made to measure sizes are available



Installation Instructions

To learn how to install the aluminium driveway gates, go to the installation instructions provided in the pages below.

How to Install onto Brickwork ►

How to Install onto Posts ►

How to install aluminium driveway gates to brickwork How to install aluminium driveway gates to posts

Colour Chart

Colour chart

Component Sizes

Surrey design component sizes

Sizing diagram
