Hampshire Aluminium Driveway Gates | Arched Top & Open Pales

Buy Online Today

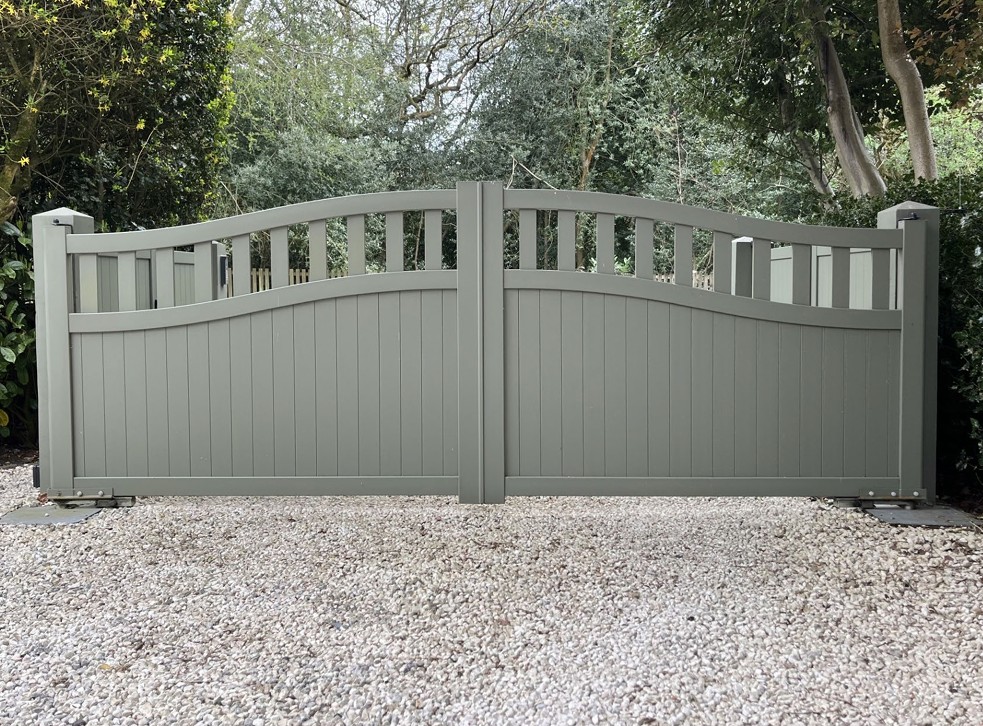

Hampshire Aluminium Driveway Gates | Arched Top & Open Pales

The Hampshire Arched Top Aluminium Driveway Gates are available to purchase online in width and height configurations to meet the demands of most residential properties. These stunning double gates benefit from a low maintenance powder coated paint finish, have an arched top profile with open pale sections and include vertical infill boards to provide privacy and security to the main vehicle entrance of your driveway.

Ordering Sizes

Please select the size combination that you need from the menu below. When selecting your required option, it is crucial to understand that the width measurements denote the combined physical size of a pair of gates. You will need additional space for the hinges, lock and posts. Please refer to the table in the product description below to establish the actual opening size you will require.

Please allow approximately 3 - 4 weeks lead time for delivery of this product.

Select the Size You Need (gates are sold as a pair):

Other Options & Accessories

Select the Colour:
Do You Need a Factory Fitted Handle & Lock?:
Do You Need a Drop Bolt?:
Do You Need Posts?:

The Hampshire Arched Top Aluminium Driveway Gates will create a striking first impression at the entrance of your property and will enhance privacy and security at a very affordable price. They feature a low-maintenance, fully aluminium construction and benefit from a stylish arch top design. They include an open pale section at the top to allow light and wind to pass through. At the same time, the bottom comprises vertical solid infill boards to give privacy and a timeless impression. These excellent double gates have a hardwearing black or anthracite grey powder-coated paint finish and include 4 x wall-mounted hinge brackets and 2 x floor brackets as standard. Suitable for manual or electric operation (depending on your requirements), the Hampshire design can be complemented with a range of additional features shown in the option and accessories menu.

Hampshire Aluminium Driveway Gates Specification

  • The ageless and graceful arched top will enhance any home.

  • The gates are reasonably priced and constructed of high-quality materials.

  • Available in two different colours and offers a sleek, modern feel.

  • They won't warp or bend, so you can count on them to secure your driveway entrance.

  • The gates are simple to install and substantial enough to block most unauthorised visitors, thanks to their complete aluminium construction.

  • The Hampshire design is an excellent moisture-resistant substitute for wood, making them perfect for coastal homes or other salt-contaminated locations.

  • Available to buy online in a choice of width and height configurations.

  • A long-lasting powder coating of black or anthracite grey paint looks fantastic and delivers abrasion resistance.

  • Surface-mounted adjustable hinges may be attached to an aluminium post or masonry wall.

  • The gates come with 4 x wall-mounted hinges and 2 x floor-mounted hinges and include installation instructions for easy DIY fitment.



Ordering Sizes

The drop-down menu width measurements represent the combined physical width of the two gates. The height is established by measuring the distance between the arch's top and the vertical rail's bottom. However, you must still consider the extra space needed for the lock, hinges, and ground clearance.

Use the chart below to find the ideal distance between your brick walls or support posts.

Opening Size Requirements

Aluminium driveway gates opening size requirements diagram

If you do not see your size, please let us know. We can work with you to find a solution.

Physical Width = 3000mm

The opening should measure 3030mm - 3060mm between your walls or posts

Physical Width = 3250mm

The opening should measure 3280mm - 3310mm between your walls or posts

Physical Width = 3500mm

The opening should measure 3530mm - 3560mm between your walls or posts

Physical Width = 3750mm

The opening should measure 3780mm - 3810mm between your walls or posts

Physical Width = 4000mm

The opening should measure 4030mm - 4060mm between your walls or posts

Height Dimensions

You will need the walls or posts to be at least 100mm higher than the physical height of the gates. Please ensure this is available to ensure you have sufficient space to mount the top and bottom hinges.



What is Included with the Double Gates as Standard?

4 x Wall Mounted Adjustable Hinges

2 x Floor Mounted Hinges


Do you Need to Buy Aluminium Posts?

When erecting the gates in a position without a suitable support structure, the introduction of posts is crucial. These elements can either be buried in the ground and supported by concrete or fastened to an existing hard surface. The posts compatible with the Hampshire design are visible at the top of the page in the options and accessories menu.


The posts are manufactured from a 3.5mm thick profile to ensure that they can handle the weight of the gates. They come with a black post cap to keep moisture out and are available in the same colour as the gates you select.


Confused About Ordering Sizes?

To save the high cost of having the gates rebuilt, contact us if you are unsure of the size you want before placing your order.



Installation Instructions

You should always follow the guidelines provided in the instructions for a successful installation.

How to Install onto Brickwork ►

How to Install onto Posts ►

How to install aluminium driveway gates to brickwork How to install aluminium driveway gates to posts



Important Delivery Information

If you live in mainland England or Wales, the delivery charge will be displayed to you once you have added the goods to your basket and are in the website's checkout section. If you reside in Scotland, please get in touch with us before placing your order, as delivery surcharges (which will vary based on your postcode) will be incurred.

Colour Chart

Colour chart

Component Sizes

Hampshire design component sizes

Size diagram for Hampshire arched top design
