Classic Low Bow Metal Garden Gate

The Classic Low Bow Metal Garden Gate is stylish, practical and robust. Suitable for a wide range of residential entrances, it incorporates ornate wrought iron style scrollwork set within a solid steel frame. The framework comprises 20mm x 6mm flat bar steel, the infill bars are 10mm in diameter, and the scrolls are 10mm x 3mm. It includes easy-to-install surface-mounted hinges and a latch mechanism that you can fix to various appropriate surfaces, including masonry, steel or timber. The gate is zinc-plated and powder-coated during manufacture to protect against rust and corrosion and, as a consequence, is both long-lasting and terrific value for money.

Classic Low Bow Wrought Iron Style Garden Gate Specification

• Traditional arched top provides an aesthetically pleasing appearance.

• Decorative wrought iron style scrollwork adds charm and character.

• This product is manufactured to high standards and features 20mm x 6mm metal frames, 10mm infill bars and 10mm x 3mm scrolls.

• Suitable for left or right-hand hanging.

• It comes with surface-mounted fixed hinges and a universal latch mechanism.

• Available to order online in a selection of sizes to suit various opening widths.

• The low maintenance zinc plated (electro-galvanised) and black powder-coated paint finish will help resist rust and corrosion of the steel surfaces.

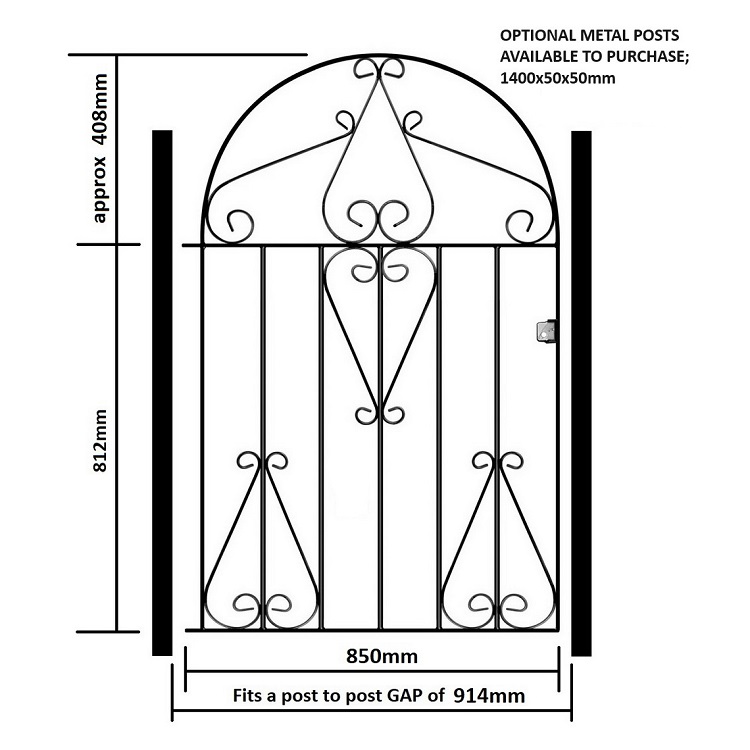

Physical Height

• The width option that "Fits Opening" 838mm (2ft 9") has a Physical Height of 1181mm

• The width option that "Fits Opening" 914mm (3ft) has a Physical Height of 1219mm

• The width option that "Fits Opening" 991mm (3ft 3") has a Physical Height of 1257mm

Ordering Sizes

• Width (Fits Opening): The measurements in the menu indicate the size of the gap you will need between your walls or existing posts. These dimensions already integrate the space required for the hinge and latch components. No other adjustments are necessary.

• Physical Height: This measurement is made from the top of the arch to the bottom of the framework. We have not included the ground clearance requirements you will need when installing the product.

Example Ordering Size

If the width of your aperture/gap size is 991mm, you will need to order a gate that will "fit an opening of 991mm".

Will Metal Posts Be Required?

If you position the gate in a location without a suitable support structure, you must install metal posts. If this applies to your installation, please remember that these components will take up additional space.

Example: A gate to fit an opening of 991mm combined with 2 x 50mm posts will need an overall width of 1091mm.

Do You Need Help & Advice?

We have worked hard to provide you with lots of help and advice within our online store. We have included a measuring guide, installation guide, FAQ page, and a concise buying guide. Alternatively, if you have any questions about this product or require additional assistance selecting the most appropriate size, please don't hesitate to contact us.

A plethora of extra product details and suggestions are also available from us. Here are some of our guidance pages that are the most popular.

• Typical Installation Issues and Solutions

• Ordering Guide

• What to Consider When Buying Garden Gates

• Homeowners Guide to Gates for the Garden

• How Do You Extend the Life of Metal Gates?

• Made to Measure Sizes

• Useful Tips

Important Information About the Classic Low Bow Metal Garden Gate

Fittings: This product includes the hinge and latch components as standard. We do not provide the screws/fixings you will need to use to securely attach these components to your chosen support structure (i.e. brickwork or posts).

Metal Posts: To deliver the support needed, you must ensure your posts are the proper size and type. These components should be buried into the ground and stabilised with concrete.

Installation: You must correctly install the gate using suitable connections and always follow the instructions provided with the product. Before starting the installation, we recommend that you ensure that the structure you are attaching the fittings into can provide adequate support.

Width: The "fits opening" dimensions denote the size of the aperture/gap you will need for the gate to fit. Included in these dimensions is the space necessary for the hinges and latch. It does not in any way relate to the physical width of the gate. If you still need to figure out what this means, please read thoroughly and understand our comprehensive guide explaining how to choose the proper size.

Painting: The Classic Low Bow Metal Garden Gate has a rust and corrosion resistant zinc-plated and powder-coated paint finish and is supplied to you ready to install.
