Royale Grange Wrought Iron Style Side Gate

Buy Online Today

Royale Grange Wrought Iron Style Side Gate

The Royale Grange Wrought Iron Style Side Gate is just fantastic and will be an excellent addition to any property owner wishing to boost security without sacrificing visual appeal. It has a heavy-duty solid steel framework, infill bars, and several ornamental design elements to give a distinctive look. The gate is available in various sizes to accommodate a wide range of common opening widths, and it comes standard with hinges and a latch mechanism.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Select the Size You Need:

Other Options & Accessories

Hinge Post:
Latch Post:

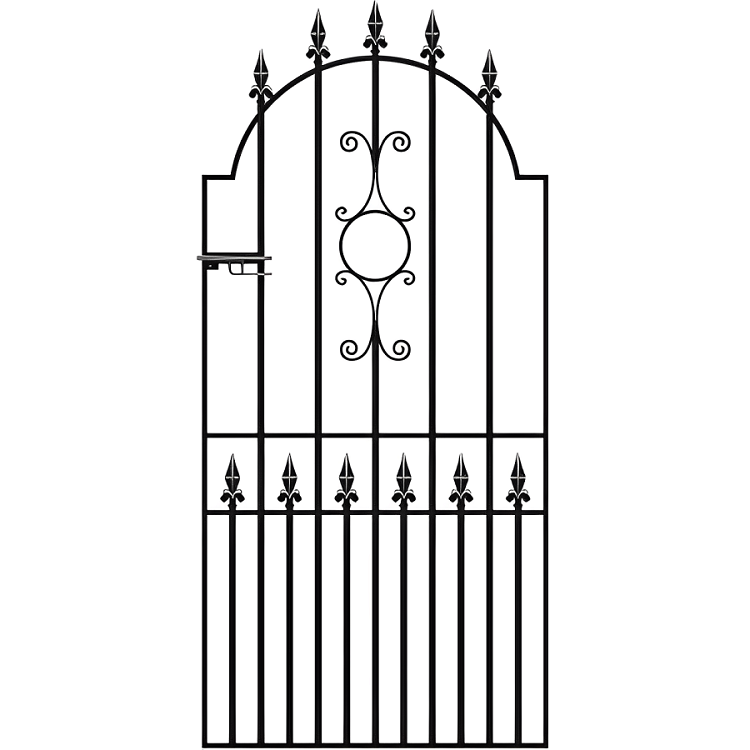

The Royale Grange Wrought Iron Style Side Gate has a commanding appearance that will look great at any pedestrian access point on your property. It features an attractive arch top, a double row of fleur-de-lys finials, central wrought iron style scrolls, 16mm round metal infill bars and a 40mm x 10mm flat bar steel construction. It is suitable for many home and garden installations where the addition of an effective and durable physical security barrier will prove beneficial to the property owner. The Royale Grange is available in a selection of sizes and includes surface-mounted adjustable hinges, a sliding latch that you can quickly secure with a padlock and a factory-applied black primer undercoat ready to be painted to the colour of your choice before installation.

Royale Grange 6ft 6" High Wrought Iron Style Side Gate Specification

  • Heavy-duty wrought iron style construction is perfect for any residential entrance.

  • Traditional design elements create a universal appeal.

  • Handmade in the UK using 40mm x 10mm frames and cross rails combined with 16mm solid metal infill bars.

  • A double row of fleur-de-lys finials provides added visual appeal.

  • This product features surface-mounted adjustable hinges and a sliding latch that can be secured using a padlock.

  • Suitable for right-hand hanging only (as viewed from the roadside).

  • The Royale Grange design is primed with a black undercoat during manufacture. It must be finished with exterior grade paint before installation to control rust and corrosion of the steel.


Height (once installed)

  • 1980mm (6ft 6") + finials



Ordering Sizes

  • Width (Fits Opening): This measurement relates to the width of the opening you will need to have between walls or posts. The dimensions already include the space taken up by the hinges and latch, so you don't need to make any additional calculations.

  • Height (once installed): This contains a ground clearance allowance of 50mm (2"). This dimension is from the ground to the top of the arch. The finials above this measurement are not included.

Go to the measuring guide if you are confused about ordering sizes

Example Ordering Size

If the width of your entrance or the current gap between posts is 920mm, you must select a gate constructed to fit an opening of 920mm.

Are Metal Posts Needed?

You will need to install metal posts if there is no support for the hinges or latch. If these items are required, you must note that you will need additional space.

Example: If you select a gate to fit an opening of 920mm and 2 x 100mm metal posts, the overall space required will be 1120mm.



Searching for More Help & Support?

If you have any general queries about the Royale Grange, you can fill in our enquiry form, and we will be on hand to assist. Alternatively, we have provided helpful information within the measuring guide section, FAQs, installation guide section and buying guide pages of our website.

Need a made to measure size? Click here for more information

For further general information about our products, you may also view the pages below:



Practical Facts About the Royale Grange Tall Metal Side Gate

Fittings: The gate includes a hardware pack with a latch fitting and a pair of surface-mounted hinges. You must buy the mounting screws separately.

Metal Posts: When these components are required, you must use the correct post type. "In-ground posts" must be set to the proper depth and will need to be stabilised with concrete.

Installation: Only affix the hinges and latch to existing brickwork or posts if you are confident they will provide enough support. For further information, always read the installation instructions.

Width: The "fits opening" dimensions indicated in the menu are the gap size you will need between walls or posts. This measurement has already included the space required for the hinges and latch. It does not refer to the physical width of the gate. You should read "How to Choose the Right Size" if you do not know what this means.

Painting: It is necessary to paint the Royale Grange Side Gate before installation to prevent rust and corrosion. Alternatively, don't hesitate to contact us if you prefer to upgrade to a low-maintenance electro-galvanised (zinc-plated) black powder-coated paint finish.

Discover how to measure the opening


Adjustable heavy duty hinges diagram



Go to the measuring guide - Click here

If you would like to upgrade the features on this high quality metal side gate we have the following accessories and additional items available.

  • Metal Posts (available in wall mounted or in-ground options in a choice of sizes to suit your requirements).

  • Zinc plated (electro galvanised) and powder coated finish.

  • Heavy duty mortise lock with key.

  • The option to specify left or right hand hanging.

To find out more information, email or fill in our enquiry form.
