Hampton Wooden Estate Gates | 1.8m High

Buy Online Today

Hampton Wooden Estate Gates | 1.8m High

Handmade in the UK using a combination of low maintenance pressure treated timber and metal components, these great value wooden driveway gates have a strong, imposing and timeless overall appearance.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Select the Size You Need (gates are sold as a pair):

Other Options & Accessories

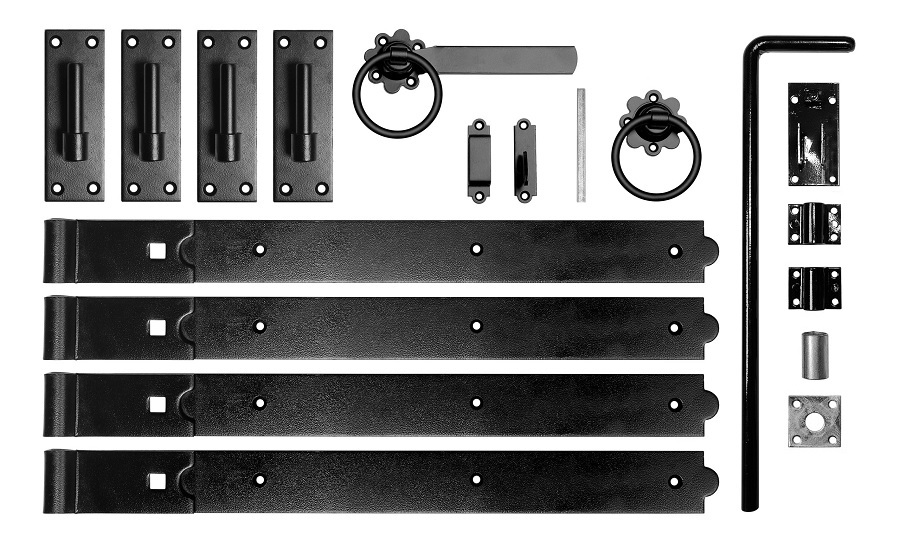

Double Gate Fittings Pack:
Wooden Posts:

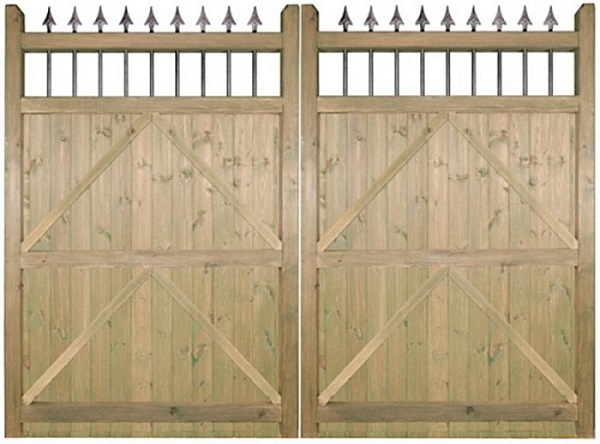

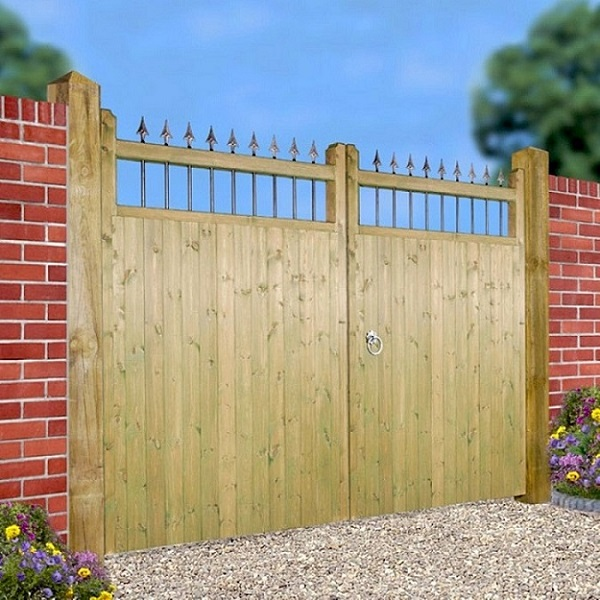

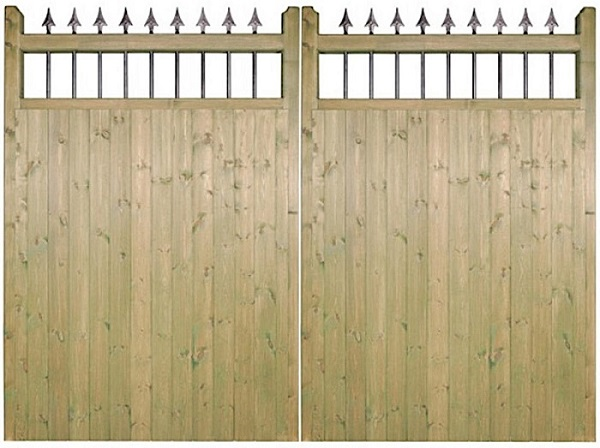

Representing fantastic value for money, the Hampton Wooden Estate Gates will add a great focal point to the entrance of your driveway. Available to buy online in several sizes, these imposing double gates feature a solid boarded design coupled with an open section for added design appeal. For improved aesthetics, they benefit from spear-shaped finials mounted to the top rail and metal infill bars within the top portion, making them an excellent choice for any homeowner looking to restrict access to their property at a price you can afford.

Hampton Timber Estate Gates Specification

  • Handmade in the UK

  • Available to order in a selection of sizes

  • Manufactured using pressure treated timber for superior levels of protection against the UK weather

  • Features a 70mm x 70mm mortise and tenon jointed framework

  • 95mm x 14mm tongue and groove infill boards

  • 70 x 54mm & 44mm x 44mm bracing provides added strength, stability and rigidity

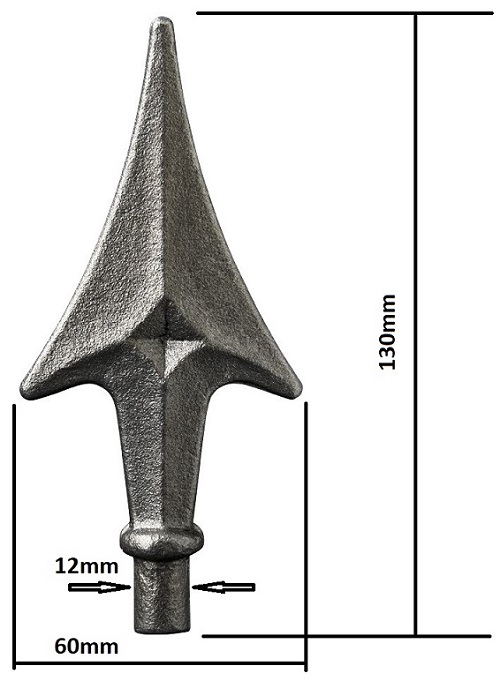

  • 12mm metal infill bars fitted with spear shaped finials (primed black)

  • Smooth planed pressure treated timber finish


Physical Height

  • 1800mm (71")



Ordering Sizes

Select the option you need from the drop down box at the top of this page. Please be aware that the width dimensions stated are the combined physical size of a pair of Hampton Wooden Estate Gates placed side by side. It is not the opening size into which they will fit into. We have made no allowance for hinges and fittings.

Need help choosing the right size? Click here for more information



Need Help Choosing Hampton Wooden Driveway Gates for Your Home?

Email your questions to or simply fill in our online form and we will be on hand to provide support. To find help and advice online we recommend you refer to the buying guide, ordering guide and frequently asked questions. Alternatively if you need help with installation why not take a look at the pages detailed below.

We have a made to measure service available  - Click here to find out more



Useful Information About the Hampton 1.8m High Wooden Gates

Width Dimensions: The measurement corresponds to the actual width of both gates. To avoid any confusion when placing your order, this means that each pair comprises the following:

  • 2400mm pair = 2 x 1200mm

  • 2700mm pair = 2 x 1350mm

  • 3000mm pair = 2 x 1500mm

  • 3300mm pair = 2 x 1650mm

  • 3600mm pair = 2 x 1800mm

Height Dimension: This measurement is from the underside of the gates to the highest point. When installing, you will need to allow around 2” (50mm) for ground clearance, so please make sure this is available before you place your order.

Fittings: You can add a fitting pack to your order by selecting the appropriate hinges from the options and accessories menu above.

Posts: We recommend using wooden posts to fit the gates. Wall-mounted posts are an acceptable option if you are installing between existing walls or brickwork. For freestanding installations, you will need to use in-ground posts. In either instance, the gap created should be 40mm wider than the width of the gates you order, as this will ensure adequate room for the hinges and latch.

Finish: The Hampton wooden estate gates are manufactured from smooth planed pressure treated softwood. This low maintenance finish removes the need to paint or stain the gates before installation. Please be aware that the pressure treatment process will result in the timber having a green tint; however, this will weather down over time to a more natural appearance.

Installation: We only recommend using hook and band hinges when fitting the gates. These must be of the appropriate size to provide the required level of support. For more Information and advice, please refer to our installation guide.

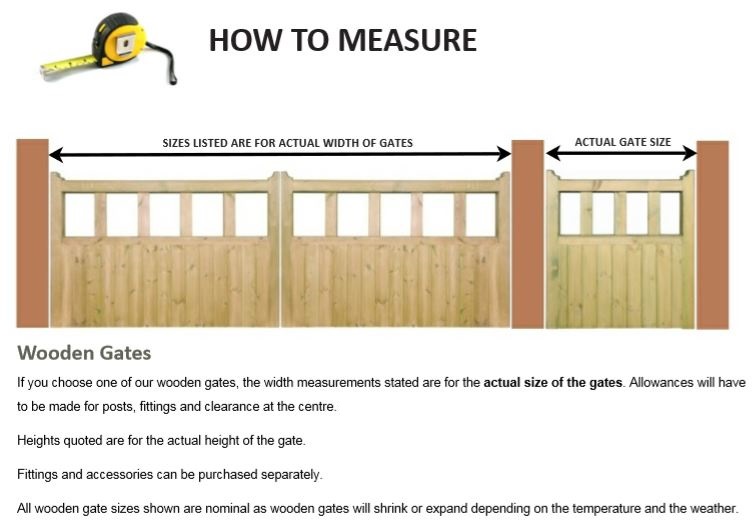

How to measure the gates


What size opening will the Hampton Wooden Estate Gates fit into?

If you are fitting double gates between existing timber posts (with the hinges fitted on the back face of the gate/post) then we recommend the following space is available.

  • Physical Width of 2400mm = Fits an opening of approximately 2440mm – 2450mm

  • Physical Width of 2700mm = Fits an opening of approximately 2740mm – 2750mm

  • Physical Width of 3000mm = Fits an opening of approximately 3040mm – 3050mm

  • Physical Width of 3300mm = Fits an opening of approximately 3340mm – 3350mm

  • Physical Width of 3600mm = Fits an opening of approximately 3640mm – 3660mm

NB* sizes are based on the options shown in the drop down menu.

What if i need to add wooden posts?

If your installation requires wooden posts then you will need to take into account the additional space required. The calculation is worked out in the following way.

Physical width of gates + width of posts (2 x 100mm is sufficient if using wall mounted posts or 2 x 150mm if freestanding posts are used) + 40/50mm (space needed for hinges, latch and opening tolerances)

Example: a pair of 3000mm gates combined with 2 x 100mm posts will require the existing gap between pillars to be approximately 3240mm-3250mm.

What size hinges and what fittings do i need to complete the installation?

We recommend using 2 x (pairs) 24” hook and band hinges. 1 x ring latch and a minimum of 1 x drop bolt to hold the gate closed will also be required.

Do you need hinges, posts and accessories to complete your gate installation? If required please choose from the options detailed below.

If you do not know what items to order, need would like some assistance with gate or posts sizes or have a query prior to placing an order online please call 0844 804 5577 or email and a friendly member of staff will be on hand to provide support.
