Drayton Shaped Top Wooden Estate Gates | 1.8m High

Buy Online Today

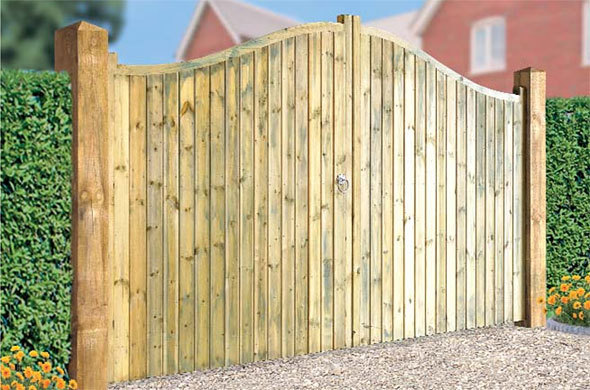

Drayton Shaped Top Wooden Estate Gates | 1.8m High

These stylish double wooden gates will suit any driveway. They feature a traditional archtop design and low maintenance pressure treated timber construction to ensure excellent levels of protection against rot and decay.

Delivery:
Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Physical Width (of the pair):

Other Options & Accessories

Double Gate Fittings Pack:
Wooden Posts:

Suitable for residential driveway applications, the Drayton Shaped Top Wooden Estate Gates will add charm and character to the entrance of your property at an affordable price. With a traditional archtop design, these timeless wooden driveway gates are handmade in the UK using pressure treated softwood to ensure optimum protection against the elements, whilst the sturdy mortise and tenon jointed framework provide outstanding strength and rigidity. Available to buy online in a range of sizes, the gates can be installed with the high point in the centre for a different look, fitted with the low point in the middle for a more personal appearance.

Drayton Shaped Top Wooden Gates Specification

  • Timeless arch design will suit any style of property

  • Handmade in the UK by time served joiners with many years experience

  • Constructed using pressure treated Scandinavian Redwood

  • Available to buy online in a choice of sizes

  • 70 x 70mm outer framework with mortise and tenon joints

  • 95mm x 14mm tongue and groove infill boards

  • 70 x 54mm & 44mm x 44mm rear bracing prevents sagging and twisting

  • Drayton timber double gates are suitable for automation (modifications may be required)

  • Supplied with a smooth planed finish ready for painting or staining

  • Hinges, fittings, posts and accessories are sold separately



Physical Height

  • Centre: 1800mm (71")

  • Side: 1500mm (59")






Ordering Sizes

Pick the size required using the drop down menu at the top of this page. Remember that the sizes stated are the physical width of a pair of Drayton Wooden Estate Gates placed side by side. It does not refer to the opening size into which they will fit into. We have made no allowance for the additional space you will need for the hinges and fittings.

Measuring Guide - Click here






Confused About Ordering Drayton Timber Estate Gates Online?

If you are unsure what size to order or would like to speak to a member of staff prior to placing an order online call Garden Gates Direct now on 0844 804 5577 or email sales@gardengatesdirect.co.uk.

Alternatively you can find lots of useful information within the buying guide, order guide and frequently asked questions pages. For help and advice on installing the gates why not take a look at the pages detailed below.

Find out about our made to measure gates by clicking here






Useful Information About the Hampton 1.8m High Wooden Gates

Width Dimensions: When selecting the size you need to order, please be aware that the size in the drop-down menu refers to the total width of both gates (when placed side by side). For clarity, each pair comprises the following:

  • 2400mm pair = 2 x 1200mm

  • 2700mm pair = 2 x 1350mm

  • 3000mm pair = 2 x 1500mm

  • 3300mm pair = 2 x 1650mm

  • 3600mm pair = 2 x 1800mm

Height Dimension: Measured from the underside of the gates to the highest point (in the middle and the sides). When you fit the gates, you will require additional space for ground clearance.

Fittings: If you need to add a fitting pack (containing the hinges, latch, and drop-bolt) to your order, please choose the appropriate option from the menu at the top of the page.

Posts: We advise using wooden posts to fit the gates. Wall-mounted posts are a suitable option if you fit between walls or brickwork. For freestanding applications, you will need to make use of in-ground posts. In each case, the gap created should be 40mm wider than the width of the gates you order. This additional space will ensure adequate room for the hinges and latch.

Finish: The timber used to construct the Drayton shaped wooden estate gates are smooth planed pressure treated softwood. This low maintenance finish eliminates the requirement to paint or stain the gates before installation. Please be aware that this process will cause the timber to have a green tint; however, this will weather down over time to a more natural appearance.

Installation: We only recommend using hook and band hinges when installing the gates. You should only fix the hinges to the horizontal rails for optimum support. For more information, read the installation guide.

Hinges and Fittings for Wooden Gates - Click Here

How to measure for wooden gates




What size opening will the Drayton Shaped Top Estate Gates fit into?

If you are fitting double gates between existing timber posts (with the hinges fitted on the back face of the gate/post) then we recommend the following space is available.

  • Physical Width of 2400mm = Fits an opening of approximately 2440mm – 2450mm

  • Physical Width of 2700mm = Fits an opening of approximately 2740mm – 2750mm

  • Physical Width of 3000mm = Fits an opening of approximately 3040mm – 3050mm

  • Physical Width of 3300mm = Fits an opening of approximately 3340mm – 3350mm

  • Physical Width of 3600mm = Fits an opening of approximately 3640mm – 3660mm

NB* sizes are based on the options shown in the drop down menu.

What if i need to add wooden posts?

If your installation requires wooden posts then you will need to take into account the additional space required. The calculation is worked out in the following way.

Physical width of gates + width of posts (2 x 100mm is sufficient if using wall mounted posts or 2 x 150mm if freestanding posts are used) + 40/50mm (space needed for hinges, latch and opening tolerances)

Example: a pair of 3000mm gates combined with 2 x 100mm posts will require the existing gap between pillars to be approximately 3240mm-3250mm.

What size hinges and what fittings do i need to complete the installation?

We recommend using 2 x (pairs) 24” hook and band hinges. 1 x ring latch and a minimum of 1 x drop bolt to hold the gate closed will also be required.

Do you need hinges, posts and accessories? If required please select from the following items.

If you do not know what additional items to order or need help with sizes please call 0844 804 5577 or email sales@gardengatesdirect.co.uk and a friendly member of staff will be on hand to provide support.
