Drayton Wooden Estate Gates | 1.8m High

Buy Online Today

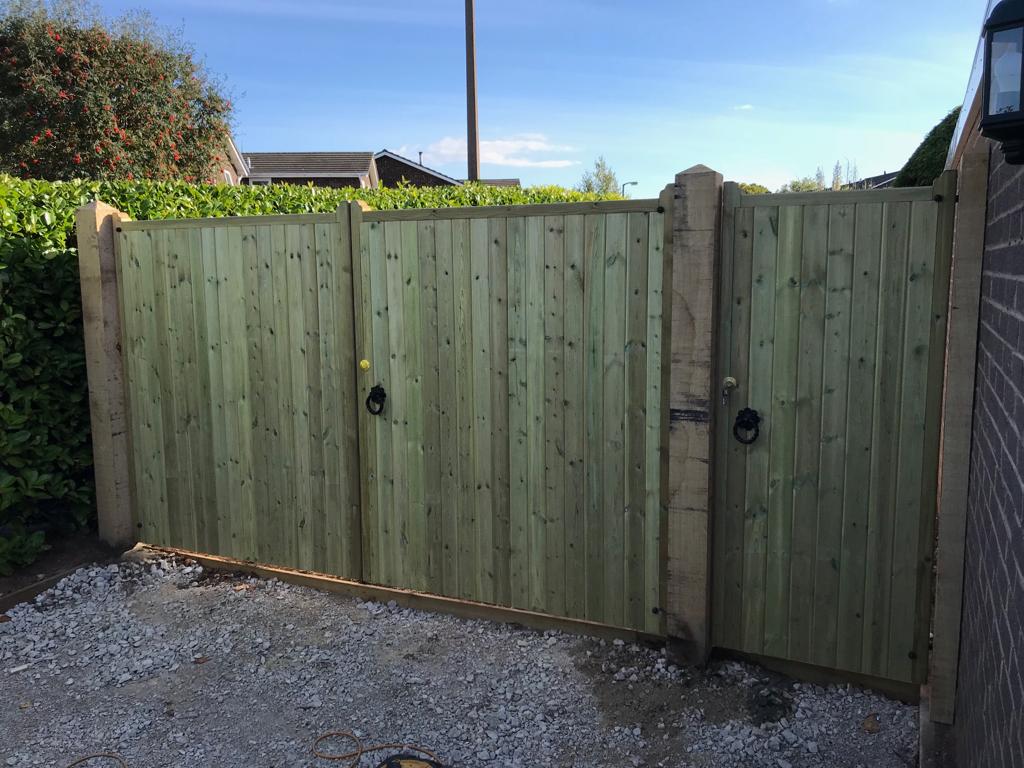

Drayton Wooden Estate Gates | 1.8m High

Available to order in a range of sizes these superb value pressure treated timber estate gates are strong, durable and look great.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Select the Size You Need (gates are sold as a pair):

Other Options & Accessories

Double Gate Fittings Pack:
Wooden Posts:

Constructed using pressure treated timber, the Drayton Wooden Estate Gates are genuinely fantastic value for money, making them an excellent option for the budget-conscious property owner looking to purchase a set of high-quality wooden gates at a price they can afford. With a simple and timeless design, the Drayton design features a chunky mortise and tenon jointed outer framework combined with rear bracing to provide strength, rigidity and durability whilst the vertical tongue and groove cladding creates an aesthetically pleasing appearance.

Drayton Timber Estate Gates - Suitable for any Driveway Entrance

  • Adds charm and character to any residential entrance

  • Provides privacy and security at a competitive online price

  • Hand crafted in the UK to an industry leading standard

  • PEFC certified pressure treated timber construction

  • 70mm x 70mm mortise and tenon framework provides strength and stability

  • Drayton gates are clad with 95 x 14mm tongue and groove boards

  • 70 x 54mm & 44mm x 44mm diagonal bracing provides additional support

  • Drayton estate gates are suitable for automation

  • Finished to a smooth planed timber surface

  • Hinges, fittings, posts and accessories are sold separately


Physical Height

  • 1800mm



Ordering Sizes

Select the gates you require from the list of options within the drop down menu. When making your choice please be aware that the sizes stated are the physical width of a pair of Drayton Estate Gates placed side by side. No allowance has been made for the additional space you will need for the hinges and latch. If you are confused about ordering sizes please contact us for assistance.

Measuring Guide - Click here



Have a Question About the Drayton Wooden Estate Gates?

For impartial help and advice please email your queries to or send a message here and we will get back to you as soon as we can. You may also find the answers you are looking for if you refer to our comprehensive buying guide, ordering guide and FAQ`s section or if you need help with installation click the links below to find out more details.

Find out about our made to measure gates by clicking here



Useful Information About Drayton Double Wooden Gates

Width Dimensions: The dimensions shown in the drop-down menu at the top of the page are the total physical width of both gates when placed side by side. To avoid any confusion when placing your order this means that each pair comprises of the following:

  • 2400mm pair = 2 x 1200mm

  • 2700mm pair = 2 x 1350mm

  • 3000mm pair = 2 x 1500mm

  • 3300mm pair = 2 x 1650mm

  • 3600mm pair = 2 x 1800mm

Height Dimensions: This is measured from the bottom of the gates to the highest point. The space you will need for ground clearance has not been allowed for in this measurement. When installing, we normally recommend allowing a gap of 50mm (2”) however this will vary depending on your driveway layout.

Fittings: To add the appropriate fitting pack to your order please select the required hinges, latch and drop bolt from the options and accessories menu.

Posts: When installing, we always recommend the use of wooden posts. They can be wall mounted (if fitting between an existing masonry structure) or can be set into the ground in concrete. In both instances, the opening formed between the posts should be 40mm wider than the gates you order as this will provide the optimal spacing required for the hinges.

Finish: The Drayton design is manufactured from a low maintenance smooth planed pressure treated softwood. Please note that the treatment process will mean the timber has a green tint to it upon delivery. This is normal and will weather down over time.

Installation: To ensure the proper level of support, we only recommend hook and band hinges. These should be mounted to the top and bottom horizontal rails. For additional information refer to the general installation guide.

How to measure for wooden gates


What size opening will the Drayton Square Top Wooden Estate Gates fit into?

If you are fitting double gates between existing timber posts (with the hinges fitted on the back face of the gate/post) then we recommend the following space is available.

  • Physical Width of 2400mm = Fits an opening of approximately 2440mm – 2450mm

  • Physical Width of 2700mm = Fits an opening of approximately 2740mm – 2750mm

  • Physical Width of 3000mm = Fits an opening of approximately 3040mm – 3050mm

  • Physical Width of 3300mm = Fits an opening of approximately 3340mm – 3350mm

  • Physical Width of 3600mm = Fits an opening of approximately 3640mm – 3660mm

NB* sizes are based on the options shown in the drop down menu.

What if i need to add wooden posts?

If your installation requires wooden posts then you will need to take into account the additional space required. The calculation is worked out in the following way.

Physical width of gates + width of posts (2 x 100mm is sufficient if using wall mounted posts or 2 x 150mm if freestanding posts are used) + 40/50mm (space needed for hinges, latch and opening tolerances)

Example: a pair of 3000mm gates combined with 2 x 100mm posts will require the existing gap between pillars to be approximately 3240mm-3250mm.

What size hinges and what fittings do i need to complete the installation?

We recommend using 2 x (pairs) 24” hook and band hinges. 1 x ring latch and a minimum of 1 x drop bolt to hold the gate closed will also be required.

Do you need hinges, posts and accessories to complete your gate installation? If required please choose from the options detailed below.

If you do not know what items to order, need would like some assistance with gate or posts sizes or have a query prior to placing an order online please call 0844 804 5577 or email and a friendly member of staff will be on hand to provide support.
