Essex Wooden Estate Gates | Low Centre

Buy Online Today

Essex Wooden Estate Gates | Low Centre

These desirable wooden estate gates feature an eye-catching curved top and high-quality construction. They are the perfect option for any property owner looking to add security and privacy to their main driveway entrance.

Delivery:
Please allow approximately 3 - 4 weeks lead time for delivery of this product.

Physical Width (of the pair):

Other Options & Accessories

Double Gate Fittings Pack:
Wooden Posts:

Constructed in the UK to high standards by a team of highly skilled craftsmen, the significant downward sweeping curve featured on the Essex Wooden Estate Gates is unique. Available to order online in a choice of sizes to suit many driveways, these imposing double gates will add to the aesthetic appeal of your home whilst ensuring it remains safe at all times by providing high levels of privacy and security to the main entrance of the property.

Essex Low Centre Wooden Estate Gates Specification

  • Essex wooden estate gates have an attractive curved profile to create high levels of aesthetic appeal.

  • Suitable for many residential applications.

  • Manufactured in the UK from PEFC certified Scandinavian Redwood.

  • The gates feature a 70mm x 70mm mortise and tenon jointed frame coupled with 95mm x 14mm tongue and groove timber boards.

  • The Essex design is has a smooth planed timber finish ready for you to paint or stain them prior to installation.

  • Gates are suitable for automation (some modifications may be required).

  • Hinges and accessories are available to order separately.



Physical Height

  • 1830mm (6ft) at the sides

  • 1520mm (5ft) in the centre






Ordering Sizes

Select the width required from the menu above. Please be aware the sizes represent the physical width of a pair of Essex Wooden Estate Gates placed side by side. We have made no allowance for the space needed for the hinges and fittings.

Measuring Guide - Click here






Looking for Help Choosing the Right Size Essex Timber Estate Gates?

If you need help choosing the right size gates to order call now on 0844 804 5577 and a member of staff will be on hand to provide assistance. Alternatively email your enquiry using our online form or send a message to sales@gardengatesdirect.co.uk.

You will also find lots of useful information online if you refer to our buying guide, ordering guide and frequently asked questions pages. If you need help and advice regarding installation please click the links below to find out more.

Find out about our made to measure gates by clicking here






Useful Information About the Essex Arched (Low Centre) Wooden Gates

Width Dimensions: The measurements shown in the menu above correspond to the physical width of both gates when placed side by side. This means that each pair is made up as follows:

  • 7ft pair = 2 x 3ft 6”

  • 8ft pair = 2 x 4ft

  • 9ft pair = 2 x 4ft 6”

  • 10ft pair = 2 x 5ft

  • 11ft pair = 2 x 5ft 6”

  • 12ft pair = 2 x 6ft

Height Dimension: The physical height “in the centre” is measured from the bottom of the gates to the highest point. The “height at the sides” is taken from the bottom of the gates to the highest point at the sides. When installing this product, additional space will need to be allowed for ground clearance.

Fittings: The gates are sold without hinges, lath, or drop bolts. If you need to add these items to your order, please choose the appropriate fitting pack from the options and accessories menu above.

Posts: We recommend hanging the gates onto wooden posts. Wall-mounted and in-ground posts are an acceptable option; however, please be aware that the gap formed between the posts should be 40mm wider than the width of the gates you order. This spacing will allow the optimal spacing required for the hinges and latch.

Finish: The Essex design are manufactured using untreated smooth planed Scandinavian softwood. To achieve the required protection against rot and decay, you must stain or paint all exposed timber surfaces before installation.

Installation: Hook and band hinges should be used when installing the gates. These must be of a suitable size to fully support the weight of each gate. For more general installation advice, please click here.

Hinges and Fittings for Wooden Gates - Click Here

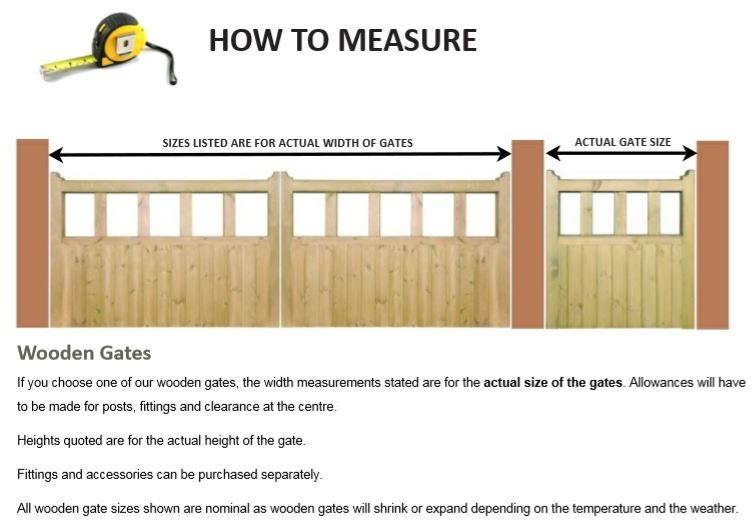

How to measure for wooden estate gates?




Do you need to allow for wooden posts?

If your installation requires wooden posts then you will need to take into account the additional space required. The calculation is worked out in the following way.

Physical width of gates + width of posts (2 x 100mm is sufficient if using wall mounted posts or 2 x 150mm if freestanding posts are used) + 40/50mm (space needed for hinges, latch and opening tolerances)

What size hinges and what fittings do i need to complete the installation?

We recommend using 2 x (pairs) 24” hook and band hinges. 1 x ring latch and a minimum of 1 x drop bolt to hold the gate closed will also be required.

If you need to add gate posts, furniture or accessories to your order please choose from the following items.

For help and advice or if  you have a question you would like answering before placing an order please call 0844 804 5577 or email sales@gardengatesdirect.co.uk.
