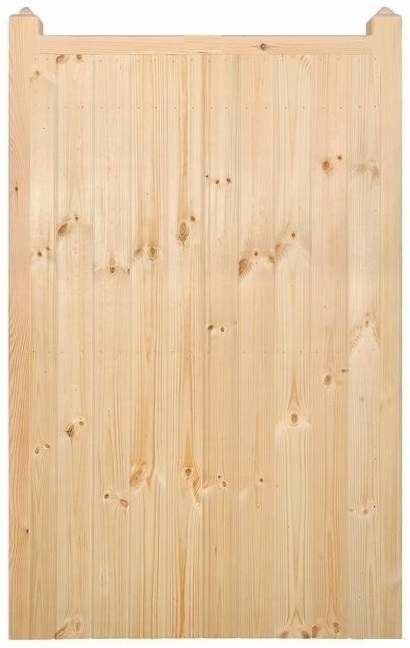

Essex Wooden Garden Gate

Buy Online Today

Essex Wooden Garden Gate

Available to buy online in various sizes, the 5ft High Essex Wooden Garden Gate is handmade in the UK to a high standard using quality timber components for a superior finish at a competitive online price.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Select the Size You Need:

Other Options & Accessories

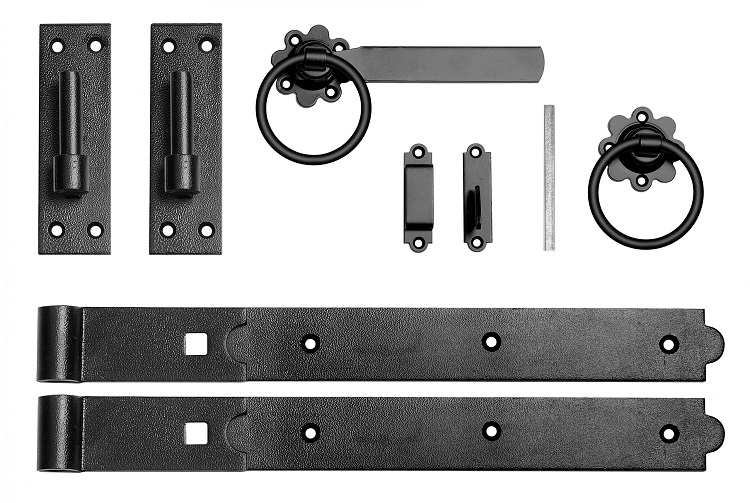

Wooden Gate Fittings Pack:
Wooden Posts:

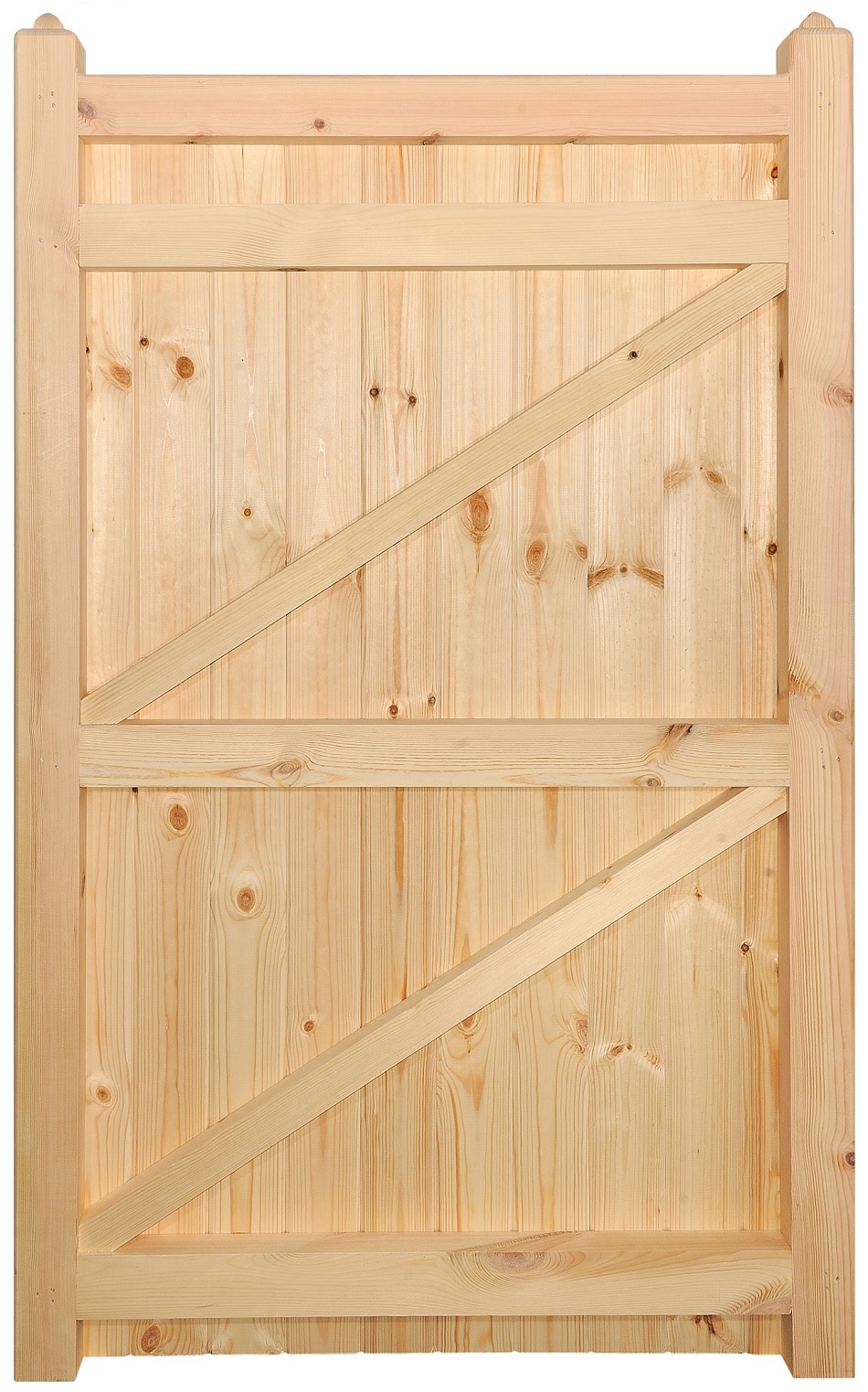

The Essex Wooden Garden Gate measures 5ft in height and will offer privacy and security to your home at an exceptional price. Handmade from carefully selected Scandinavian Redwood, it features a solid and sturdy 70mm thick mortise and tenon jointed framework, 3 x horizontal rails and diagonal bracing on the rear face to ensure strength and rigidity. With tongue and groove boards running the full height, the gate is available to order online in a choice of standard sizes, making it the perfect choice for pathways, side entrances or any other garden area that would benefit from added security.

Essex 5ft High Timber Garden Gate Specification

  • Vertical timber boards create a timeless appeal.

  • Essex wooden garden gates are supplied in a smooth planed timber finish ready for painting or staining.

  • It has a 70mm x 70mm mortise, tenon jointed framework, and 95mm x 14mm tongue and groove infill boards.

  • The gate is suitable for right-hand hanging (viewed from the front face).

  • Hinges and accessories are available to order separately.


Physical Height

  • 1520mm (5ft)



Ordering Sizes

Choose the item you need via the drop down menu at the top of the page. The sizes stated are the physical width and height of the gate. We have made no allowance for the extra space you will need for hinges, fittings, posts or ground clearance.

Read the measuring guide here



Confused About Ordering?

Please fill out our online enquiry form to get more information before placing an order. Alternatively, you can discover helpful information on our website, including a measuring guide, installation instructions, FAQs, and buying guide.

Find out about our made to measure gates by clicking here



Useful Information About the Essex Wooden Gate

Fittings: The Essex gate is does not include the hinges and latch as standard. If you wish to order these items, please choose the appropriate fittings pack from the menu above.

Posts: It is recommended that the gate is installed onto wooden posts of a suitable size and length. Where required, you can add these to your order from the options and accessories menu. For wall mounted posts it is essential they are secured to existing masonry using suitable fixings (not supplied). If you need to set the posts into the ground, we recommend they are dug to a depth of 600-900mm and held in place using concrete. When installing the posts, the gap formed should be 20mm wider than the physical width of the gate to allow for expansion of the timber and adequate space for the hinges and latch to operate correctly.

Finish: The gate is constructed from untreated smooth planed Scandinavian Redwood. All timber surfaces should be stained or painted before installation to protect against rot and decay.

Installation: The Essex design is a heavy-duty framed gate design. We only recommend the use of hook and band type hinges which should be fixed to the top and bottom horizontal rails for maximum support. For more guidance refer to our installation guide.

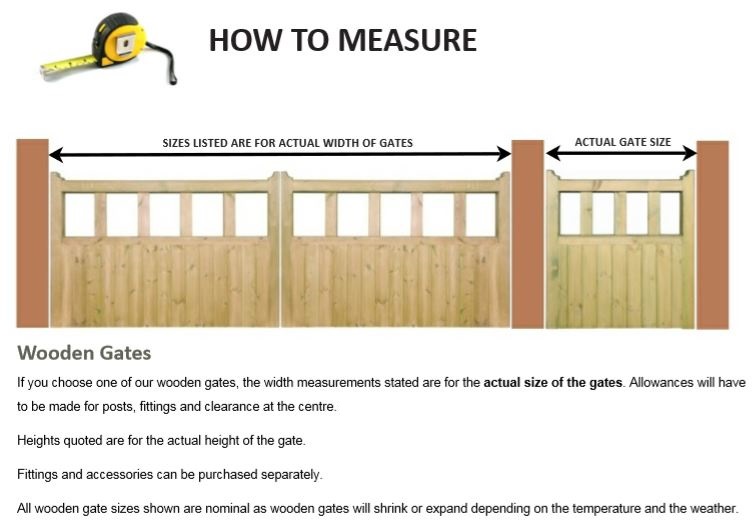

Wooden gate measuring diagram

Calculating the Size | Between Brick Walls

Fitting a wooden gate to posts mounted onto brick walls

Calculating the Size | Free Standing Posts

Fitting a single gate onto wooden posts set into the ground

If you need to order posts, furniture or accessories that are compatible with the Essex garden gate design, we recommend you choose from the options below.

To discuss what options suit a particular installation type, please email, and a staff member will be on hand to offer help and advice.
