Essex Wooden Estate Gates | High Centre

Suitable for residential driveways and large entrances, these timeless arched wooden estate gates are handcrafted to a high standard. They are available to order online in various sizes to suit most domestic requirements.

Delivery:
Please allow approximately 3 - 4 weeks lead time for delivery of this product.

Physical Width (of the pair):

Other Options & Accessories

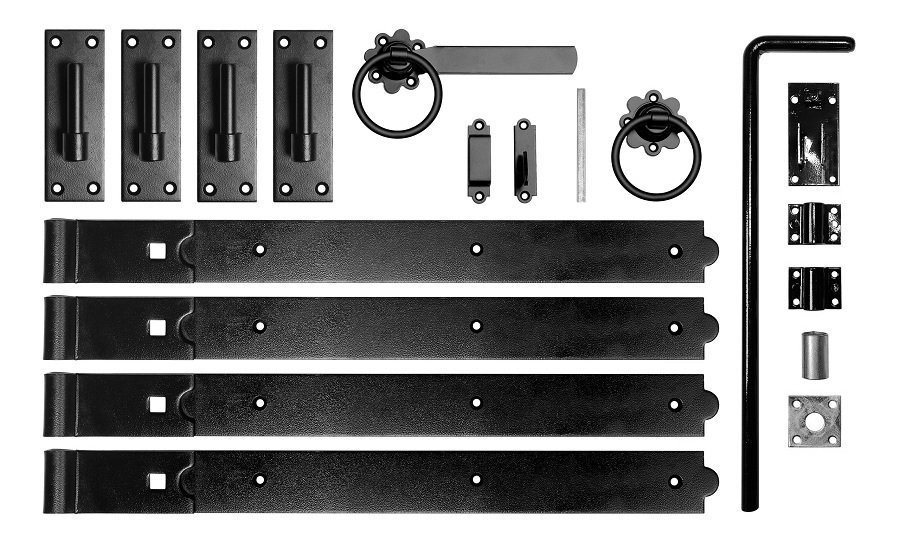

Double Gate Fittings Pack:
Wooden Posts:

A visually appealing traditional arched profile and vertical timber boards ensure the high-quality Essex High Centre Wooden Estate Gates will create a magnificent entrance to any residential driveway. Featuring a secure and robust timber framework that is connected with mortise and tenon joints, these arched double gates can be ordered online in a choice of sizes at a highly competitive price, making them an appealing option for the design-conscious homeowner looking to make a statement to the front entrance of their home.

6ft High Essex Wooden Estate Gates Specification

  • The gates have a strong and imposing design that will provide good levels of security.

  • Features mortise and tenon joints to create a strong and rigid construction.

  • Manufactured in the UK from PEFC certified Scandinavian Redwood.

  • Handmade in the UK using a 70mm x 70mm timber frame and 95mm x 14mm tongue and groove infill boards.

  • Essex wooden gates are supplied in a smooth planed timber finish ready to be painted or stained before you install them.

  • Suitable for automation (some modifications may be required).

  • Hinges, latches and drop bolts suitable for these gates are available to purchase separately.



Physical Height

  • 1520mm (5ft) at the sides

  • 1830mm (6ft) in the centre






Ordering Sizes

Select the width required from the menu above. Please be aware the sizes represent the physical width of a pair of Essex Wooden Estate Gates placed side by side. We have made no allowance for the space needed for the hinges and fittings.

Measuring Guide - Click here






Need Guidance Ordering 6ft High Essex Wooden Estate Gates Online?

Call Garden Gates Direct now on 0844 804 5577 and we will be happy to discuss your options in more detail. Alternatively email your queries to sales@gardengatesdirect.co.uk and we will send you a reply as soon as possible.

You can also find lots of helpful information online if you refer to the buying guide, ordering guide and frequently asked questions pages of our online store. Furthermore if you need help with installation click the links below to find out more details.

Find out about our made to measure gates by clicking here






Useful Information About the Essex Arched (High Centre) Wooden Gates

Width Dimensions: The measurement related to the physical width of both gates (when placed next to each other). For clarification, this means that each pair comprises the following:

  • 7ft pair = 2 x 3ft 6”

  • 8ft pair = 2 x 4ft

  • 9ft pair = 2 x 4ft 6”

  • 10ft pair = 2 x 5ft

  • 11ft pair = 2 x 5ft 6”

  • 12ft pair = 2 x 6ft

Height Dimension: These measurements are the actual height of the gates at the sides and in the middle. The amount of space you need for ground clearance has not been accounted for within these dimensions; therefore, additional space should be available to allow for this. As a guide, we usually suggest leaving a gap of 50mm (2”) at the bottom of the gates.

Fittings: If you need to add a fitting pack to your order, please choose the appropriate option from the menu above.

Posts: Wooden posts should always be used to fit the gates. You can use wall-mounted posts fixed to an existing masonry structure. Alternatively, the posts may be set into the ground and supported using concrete. In either instance, to allow space for the hinges and latch, the gap formed between the posts should be 40mm wider than the width of the gates you have purchased.

Finish: Essex wooden gates are carefully constructed from untreated smooth planed Scandinavian softwood. You must therefore paint or stain all exposed timber surfaces before installation.

Installation: Only hook and band type hinges should be used when installing the gates. These must be the appropriate size to support the weight of each gate. Read the installation guide for more advice.

Hinges and Fittings for Wooden Gates - Click Here

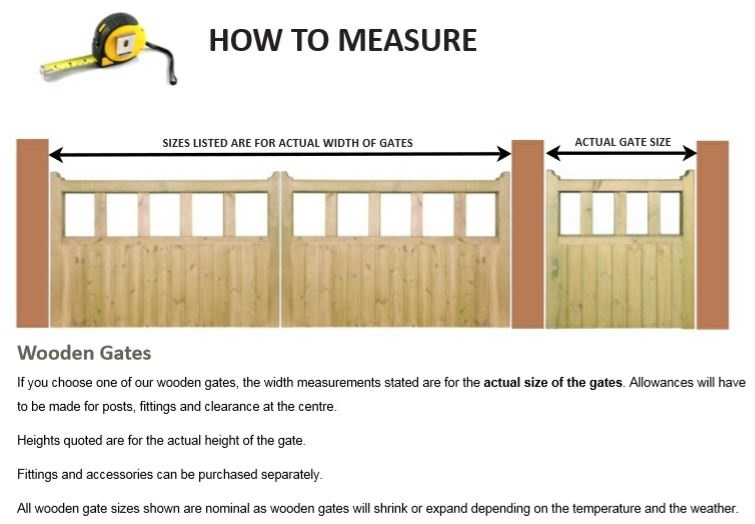

How to measure for wooden gates?




Do you need to allow for wooden posts?

If your installation requires wooden posts then you will need to take into account the additional space required. The calculation is worked out in the following way.

Physical width of gates + width of posts (2 x 100mm is sufficient if using wall mounted posts or 2 x 150mm if freestanding posts are used) + 40/50mm (space needed for hinges, latch and opening tolerances)

What size hinges and what fittings do i need to complete the installation?

We recommend using 2 x (pairs) 24” hook and band hinges. 1 x ring latch and a minimum of 1 x drop bolt to hold the gate closed will also be required.

To complement the Essex timber estate gate design we are able to offer you the following accessories and posts.

For help and advice or if you have a question you would like answering before placing an order please call 0844 804 5577 or email sales@gardengatesdirect.co.uk.
