Dalby Wooden Driveway Gates | 4ft High

Buy Online Today

Dalby Wooden Driveway Gates | 4ft High

Available to buy online in a choice of sizes, the 4ft High Dalby Wooden Driveway Gates will add security and privacy to your property at a price you can afford.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Select the Size You Need (gates are sold as a pair):

Other Options & Accessories

Double Gate Fittings Pack:
Wooden Posts:

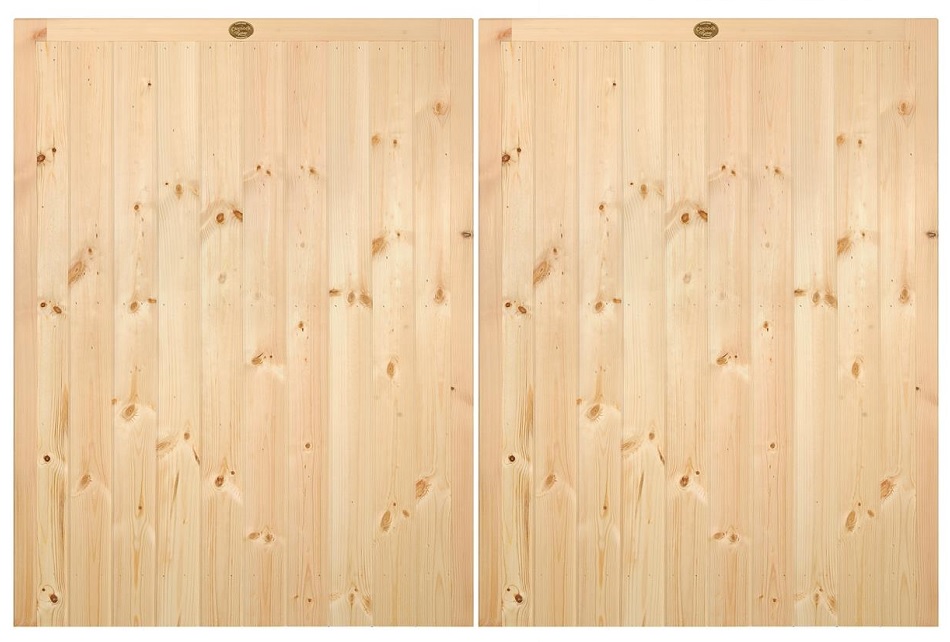

The Dalby 4ft High Wooden Driveway Gates have a timeless appearance making them suitable for modern and traditional properties alike. Constructed from smooth planed untreated Scandinavian Redwood, the Dalby design benefits from a solid panel for privacy, whilst the 70mm thick framework, horizontal rails, and diagonal bracing ensures the gates remain strong, rigid, and resistant to twisting and warping. Available to buy online in a choice of sizes from 7ft - 12ft, these great value double gates are currently one of our best-selling designs. Once stained or painted to the desired finish, they will look simply amazing.

4ft High Dalby Double Driveway Gates Specification

  • Timeless design will suit any residential location.

  • Buy online in a choice of sizes from 7ft – 12ft at an affordable price

  • Adds security and subtle aesthetic appeal.

  • Handmade in the UK from slow grown Scandinavian Redwood

  • Traditional mortise and tenon construction.

  • 70mm x 70mm outer framework with 100mm x 10mm tongue and groove boards set flush to the front face of the gates.

  • Suitable for automation

  • Smooth planed untreated timber ready to be stained or painted before installation.

  • Hinges, fittings and accessories are sold separately


Physical Height

  • 1220mm (4ft)



Ordering Sizes

Select the option required from the menu above. The physical width represents the combined size of a pair of gates. We have made no allowance for ground clearance or for the space you will need for the hinges, latch and posts.

Measuring Guide - Click here for help and advice choosing the correct size gates



Unsure Which Dalby Wooden Gates to Order for Your Driveway Entrance?

For help and advice on choosing the right size, please contact us for support or refer to our measuring guide. Alternatively, please refer to the pages detailed below for technical advice or to find answers to many common questions.

Find out about our made to measure gates by clicking here



Useful Information About the Dalby Driveway Gates

Width Dimensions: Wooden driveway gates are sold as a pair and the width dimensions shown within the drop-down menu at the top of the page refers to the physical width of both gates (when placed side by side). Each pair comprises of the following:

  • 7ft pair = 2 x 3ft 6”

  • 8ft pair = 2 x 4ft

  • 9ft pair = 2 x 4ft 6”

  • 10ft pair = 2 x 5ft

  • 11ft pair = 2 x 5ft 6”

  • 12ft pair = 2 x 6ft

Height Dimensions: The physical height detailed in the product description is measured from the underside of the gates to the highest point. No allowance has been made for any ground clearance. We recommend leaving 50mm (2”) when installing however this is a guide only and may vary according to site constraints (such as sloping driveways, steps or other similar obstructions within the swinging radius of the gates).

Fittings: The hinges, latch and drop bolt are not included as standard. If you need to add these items to your order you will need to select the appropriate fitting pack from the menu above.

Posts: We recommend using wooden posts when installing the gates. If you are fitting in between and existing support structure (such as masonry pillars) the use of wall mounted posts is acceptable. Alternatively, for freestanding installations, in ground posts will need to be used. In both instances, the gap formed between the posts should be 40mm wider than the physical width of the gates you order. This will then provide the optimal spacing for the hinges and to allow for expansion of the timber throughout the seasons.

Finish: Dalby wooden driveway gates are handmade from smooth planed Scandinavian Redwood. This timber has not been treated to offer protection against the elements. It is therefore essential that all exposed surfaces are stained or painted prior to installation to ensure the best level of protection is achieved.

Installation: When installing the product, you should use appropriate size hook and band hinges. To ensure the best level of support, they should be mounted to the top and bottom horizontal rails. For inward opening layouts, the hinges should be fixed to the back face or for outward opening layouts they will need to fit to the front face of the gates. To find out more information please check out the general installation guide.

Fittings Packs & Accessories for Wooden Drive Gates

How to measure the opening for double wooden gates


Calculating the Size | Installations Beween Brick Walls

Double wooden gate measuring diagram for mounting between brickwork

Calculating the Size | Freestanding Installations Using Wooden Posts

Double wooden gate fitting diagram for installing freestanding posts

What Size Opening Will  Be Required Between the Wooden Posts?

If you are fitting the wooden gates between existing timber posts (with the hinges fitted on the back face of the gate/post), then we recommend the following space is available.​

Physical Width of the Pair of Gates Width of Opening Required Between Posts
2130mm 2170mm
2440mm 2480mm
2740mm 2780mm
3050mm 3090mm
3350mm 3390mm
3660mm 3700mm

NB* sizes are based on the options shown in the drop-down menu.

What If I Need to Add Wooden Posts?

It is critical to account for the extra space necessary for installations that require wooden posts.

The calculation is performed in the following way.

Physical width of gates + width of posts (2 x 100mm is sufficient if using wall-mounted posts or 2 x 150mm if freestanding posts are utilised)

+ 40mm (space needed for hinges, latch and opening tolerances).

= Total Overall Space Required


A pair of 2440mm gates combined with 2 x 150mm posts will require a total overall space of 2780mm.

What Size Hinges and What Fittings Do I Need to Complete the Installation?

We recommend using 18" or 24" hook and band hinges (depending on the size of the gates you order). We also suggest you add 1 x ring latch and a minimum of 1 x drop bolt to hold the gates closed.

Double gate fitting pack example


Read the full measuring guide here



Installation Guide | Click Here ►

How to fit your wooden driveway gates?

Do you Need Posts, Gate Furniture and Accessories?

Where additional items are required to help with your installation, we recommend you select from the options below.

Don’t know what additional items to order? Email or complete our online form, and we will be on hand to answer your questions.
