Norfolk Wooden Estate Gates | 6ft High

Buy Online Today

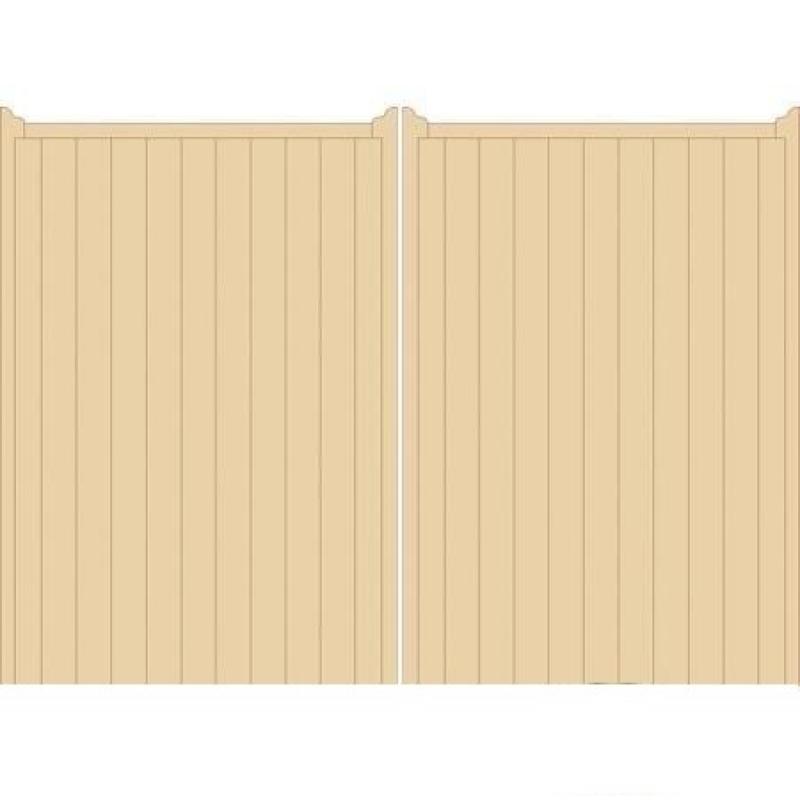

Norfolk Wooden Estate Gates | 6ft High

Handmade in the UK, these magnificent wooden estate gates have a timeless design and feature a heavy-duty timber construction. They will provide improved security and privacy to any residential driveway.

Delivery:
Please allow approximately 3 - 4 weeks lead time for delivery of this product.

Physical Width (of the pair):

Other Options & Accessories

Double Gate Fittings Pack:
Wooden Posts:

Timeless styling and high levels of privacy and security are at the forefront of the Norfolk Wooden Estate Gates. Suitable for most residential driveway entrances, these quality double gates feature a sturdy wooden framework coupled with inset timber boards to achieve an ever-popular appearance at a very attractive price.

6ft High Norfolk Wooden Estate Gates Specification

  • Simple design will create a universal appeal.

  • Wooden estate gates have a strong and imposing appearance that will create great levels of privacy and security.

  • Manufactured in the UK in a selection of popular sizes.

  • PEFC certified Scandinavian Redwood construction featuring a 70mm x 70mm mortise and tenon jointed framework and 95mm x 14mm tongue and groove timber boards.

  • Norfolk wooden estate gates are suitable for automation (some modifications may be required).

  • Smooth planed timber finish ready for staining or painting.

  • Hinges, latches and accessories for use with our range of estate gates are available to order separately.



Physical Height

  • 1830mm (6ft)






Ordering Sizes

Select the width required from the menu above. Please be aware the sizes represent the physical width of a pair of Norfolk Wooden Estate Gates placed side by side. We have made no allowance for the space needed for the hinges and fittings.

View the measuring guide






Don`t Know Which Size Gates to Order?

If you are unsure of your requirements please contact us with your measurements and we will work out the right gates to order or you can do this yourself by referring to our measuring guide. Alternatively for general queries please view the frequently asked questions and ordering guide.

Find out about our made to measure gates by clicking here

Need to Buy Matching Products for Other Areas of Your Property?

To view the complete range of wooden gates for sale within the Norfolk design please click the links detailed below.




Useful Information About Norfolk Wooden Estate Gates

Width Dimensions: This measurement is the physical width of the pair of gates when placed side by side. For clarity, this means that each pair is made up of the following:

  • 7ft pair = 2 x 3ft 6"

  • 8ft pair = 2 x 4ft

  • 9ft pair = 2 x 4ft 6”

  • 10ft pair = 2 x 5ft

  • 11ft pair = 2 x 5ft 6”

  • 12ft pair = 2 x 6ft

Height Dimensions: The physical height is measured from the underside of the gates to the highest point. When installing, you will need to allow a small amount of space for ground clearance so please make sure you factor this in when placing your order. For best results, we recommend 50mm (2”) for ground clearance however this can be adjusted to suit your driveway constraints.

Fittings: If you need to add the hinges, latch, and drop bolt to your order please choose from the available fitting packs shown in the options and accessories menu above.

Posts: When installing the gates, we recommend using wooden posts. Wall mounted posts may be used if you are fitting between existing brickwork however if no existing structure is in place the use of in ground posts will be necessary. In both instances, to ensure space is available for the hinges, it is important to be aware that the opening formed between the posts should be 40mm wider than the width of the gates you order.

Finish: The Norfolk design is handmade in the UK from smooth planed untreated Scandinavian softwood and must be stained or painted prior to installation to ensure the best level of protection against rot and decay.

Installation: Featuring a framed, ledge and braced design the Norfolk wooden gates will need to be installed using appropriate size hook and band type hinges. For the best level of support, we recommend installing the hinges to the top and bottom horizontal rails. For more information refer to the general installation guide.

Hinges and Fittings for Wooden Gates - Click Here

How to measure for wooden gates




Do you need to allow for wooden posts?

If your installation requires wooden posts then you will need to take into account the additional space required. The calculation is worked out in the following way.

Physical width of gates + width of posts (2 x 100mm is sufficient if using wall mounted posts or 2 x 150mm if freestanding posts are used) + 40/50mm (space needed for hinges, latch and opening tolerances)

What size hinges and what fittings do i need to complete the installation?

We recommend using 2 x (pairs) 24” hook and band hinges. 1 x ring latch and a minimum of 1 x drop bolt to hold the gate closed will also be required.

Do you need posts, hinges and accessories to complete installation of the Norfolk wooden estate gates? If required please select from the following options.

For technical advice or if  you have a question you would like answering before placing an order please call 0844 804 5577 or email sales@gardengatesdirect.co.uk.
