Windsor Wooden Garden Gate | 1.2m High

Buy Online Today

Windsor Wooden Garden Gate | 1.2m High

The Windsor Wooden Garden Gate features a heavy-duty timber framework and a decorative metal infill panel to achieve superior levels of strength and aesthetic appeal at a price you can afford.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Select the Size You Need:

Other Options & Accessories

Wooden Gate Fittings Pack:
Wooden Posts:

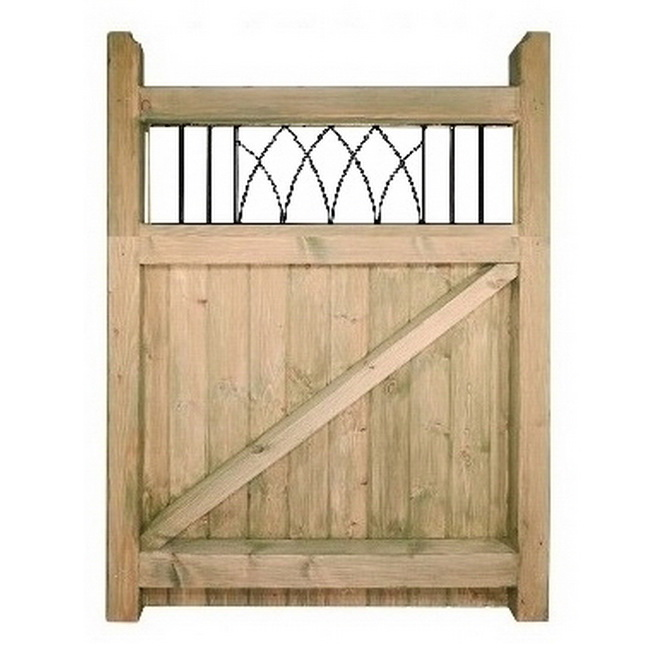

The Windsor Wooden Garden Gate is handcrafted from low maintenance smooth planed pressure-treated timber for an enhanced lifespan and reduced levels of ongoing maintenance. Designed to improve the appearance of any residential property, it is perfect for areas of the home, such as front entrances, pathways, and side access points into the garden. It features a thick and sturdy 70mm mortise and tenon jointed framework, heavy-duty horizontal and diagonal bracing for additional strength and an attractive black metal infill panel set within the top section. The stunning Windsor gate is terrific value for money.

Windsor 1.2m High Wooden Gate Specification

  • Manufactured in the UK from low maintenance smooth planed pressure treated timber.

  • Stunning looks at an affordable price.

  • Available to order in a selection of standard sizes (contact us for made-to-measure prices).

  • Designed to be left-hand hanging (as viewed from the front face of the gate).

  • 70mm x 70mm mortise and tenon jointed framework.

  • 70mm x 54mm and 44mm x 44mm bracing adds strength and rigidity.

  • 95mm x 14mm tongue and groove infill boards

  • The steel infill panel is primed black with an undercoat paint.

  • Suitable for painting or staining to the colour of your choice before installation.

  • Hinges and accessories are sold separately.


Physical Height

  • 1200mm (47”)



Ordering Sizes

Please choose the size you need from the options shown above. The sizes stated are the physical width and height of the gate and no allowance has been made for the space you will need for the hinges, latch, wooden posts or ground clearance.

Measuring Guide - Click here for help and advice choosing the correct size gates



Need Help and Advice?

Refer to our measuring guide to see how to measure the opening, view the FAQs and buying guide for general queries or refer to our installation guide to see how to fit the gate. Alternatively, please email your questions, and we will be on hand to provide support.

Find out about our made to measure gates by clicking here

Other Useful Pages you may be Interested in Include:

Hinges and Fittings for Wooden Gates - Click Here



Useful Information About the Windsor Wooden Gate

Fittings: The hinges and latch required to install this gate are not included as standard. Where these items are required, they can be added to the order using the options and accessories menu above.

Posts: We recommend the use of wooden posts when installing this gate. Wall mounted posts will need to be secured to an existing structure using appropriate fixings (not included). For stand alone installations, the posts should be set in the ground to a depth of 600mm – 900mm and supported using concrete. For both installation types, it is important to note that the gap formed between the posts will need to be 20mm wider than the width of the gate to allow space for the hinges and latch and expansion of the timber.

Finish: The Windsor range is made from low maintenance pressure treated timber which will have a temporary green tint to it. Over time this will fade down after exposure to the elements. If you are wanting to stain or paint the gate, it is important that sufficient time is allowed for the colour to fade before applying any additional treatments.

Installation: We recommend only hook and band type hinges for the installation of this item. The hinges should be mounted to the horizontal rails for optimum levels of support. For more information, please refer to our installation guide.

Wooden gate measuring diagram

Calculating the Size | Between Brick Walls

Fitting a wooden gate to posts mounted onto brick walls

Calculating the Size | Free Standing Posts

Fitting a single gate onto wooden posts set into the ground
