Gloucester Wooden Driveway Gates | 4ft High

Buy Online Today

Gloucester Wooden Driveway Gates | 4ft High

The 4ft high Gloucester Wooden Driveway Gates, available online in a choice of popular sizes, are a versatile solution for most residential applications. Constructed in the UK from smooth planed untreated softwood, the strong mortise and tenon jointed frame provides excellent rigidity. The open pale section allows wind to pass right through, making them the ideal choice for coastal properties or areas exposed to high wind.

Delivery:
Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Select the Size You Need (gates are sold as a pair):

Other Options & Accessories

Double Gate Fittings Pack:
Wooden Posts:

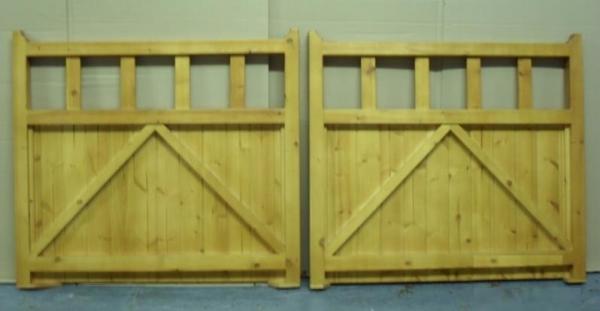

The Gloucester 4ft High Wooden Driveway Gates are available to buy online in a choice of sizes to suit many typical driveway openings. They are an excellent option for any property owner looking to secure the main entrance to the property. Handmade in the UK, the gates are made from Scandinavian Redwood and benefit from a smooth planed finish making them perfect for staining or painting to the desired colour before installation. Utilising a robust 70mm thick mortise and tenon jointed frames, 3 x horizontal rails, diagonal bracing and a solid tongue and groove boarded panel fitted to the bottom section and great value for money. For enhanced visual appeal, the top of each gate has open pales to allow light and wind to pass through, making them the ideal choice for any type of property.

4ft High Gloucester Wooden Driveway Gates Specification

  • Double wooden gates are perfect for virtually any residential driveway entrance.

  • Manufactured in the UK to high standards for years of privacy and security benefits.

  • Attractive pale sections create added visual appeal.

  • Built using a 70mm x 70mm mortise and tenon jointed frames and 95mm x 14mm tongue and groove infill boards.

  • Gloucester 4ft high wooden driveway gates are supplied in a smooth planed untreated timber finish ready for staining, painting or varnishing to the colour of your choice.

  • Suitable for automation (some modifications may be required).

  • Hinges, latches and accessories suitable for use with our range of driveway gates are available to purchase separately.



Physical Height

  • 1220mm (4ft)​






Ordering Sizes

Select the width required from the menu above. Please be aware the width measurement represents the combined size of a pair of Gloucester Driveway Gates placed side by side. We have made no allowance for ground clearance or the space needed for the hinges, fittings and posts.

Measuring Guide - Click here






Looking for Advice Buying Timber Driveway Gates Online?

If you are still determining your requirements or have a question you need answering, feel free to contact us, and a member of the Garden Gates Direct team will be on hand to assist. You can also find many helpful details within our measuring guidebuying guideordering guide and frequently asked questions section. Alternatively, if you need help installing the gates or posts, why not refer to our installation advice page or read the articles detailed below?

Find out about our made to measure gates by clicking here

Need to Order Matching Products for Other Areas of your Garden?

Click the links below to view more wooden gates for sale within the Gloucester range.




Useful Information About the Gloucester Double Wooden Gates

Width Dimensions: Wooden driveway gates are sold as a pair. This means that the widths shown in the drop-down menu refer to the physical width of both gates (when placed side by side). Each pair comprises of the following:

  • 7ft pair = 2 x 3ft 6”

  • 8ft pair = 2 x 4ft

  • 9ft pair = 2 x 4ft 6”

  • 10ft pair = 2 x 5ft

  • 11ft pair = 2 x 5ft 6”

  • 12ft pair = 2 x 6ft

Height Dimensions: The physical height is measured from the underside of the gates to the highest point. This measurement does not make any allowance for ground clearance.

Fittings: The Gloucester gates do not include hinges, latch, or drop bolt as standard. If you need to purchase these items, please choose the appropriate fitting pack from the menu above.

Posts: For optimum results we recommend using wooden posts when installing the gates. For installations where an existing support structure is present (such as brick pillars or similar support) the use of wall mounted posts is acceptable. For freestanding installations, you will need to install in ground posts to an appropriate depth to suit ground conditions. In both instances, it is important to note that the gap formed between the posts should be 40mm wider than the physical width of the gates. This is to allow sufficient space for the hinges and latch and to factor in expansion of the timber throughout the year.

Finish: The Gloucester wooden gates are constructed from untreated softwood and must be stained or painted prior to installation. Failure to carry out this treatment will result in the onset of rot and decay of the timber.

Installation: To provide adequate support to the gates we only recommend the use of hook and band hinges. If the gates are to be inward opening (onto the driveway) they should be mounted to the back of the gates and posts (the band portion should be attached to the top and bottom horizontal rails). For outward opening layouts, the hinges will need to be mounted to the front face of the gates and posts. For further information please look at our general installation guide.

Hinges and Fittings for Wooden Gates - Click Here

How to measure the opening for Gloucester 4ft high gates




Calculating the Size | Installations Beween Brick Walls

double wooden gate measuring diagram between brickwork

Calculating the Size | Freestanding Installations Using Wooden Posts

double wooden gate fitting diagram for freestanding posts

What Size Opening Will  Be Required Between the Wooden Posts?

If you are fitting the wooden gates between existing timber posts (with the hinges fitted on the back face of the gate/post), then we recommend the following space is available.​

Physical Width of the Pair of Gates Width of Opening Required Between Posts
2134mm 2174mm
2438mm 2478mm
2743mm 2783mm
3050mm 3090mm
3350mm 3390mm
3660mm 3700mm

NB* sizes are based on the options shown in the drop-down menu.

What If I Need to Add Wooden Posts?

It is critical to account for the extra space necessary for installations that require wooden posts.

The calculation is performed in the following way.

Physical width of gates + width of posts (2 x 100mm is sufficient if using wall-mounted posts or 2 x 150mm if freestanding posts are utilised)

+ 40mm (space needed for hinges, latch and opening tolerances).

= Total Overall Space Required

Example:

A pair of 2743mm gates combined with 2 x 100mm posts will require a total overall space of 2983mm.

What Size Hinges and What Fittings Do I Need to Complete the Installation?

We recommend using 18" or 24" hook and band hinges (depending on the size of the gates you order). We also suggest you add 1 x ring latch and a minimum of 1 x drop bolt to hold the gates closed.

Double gate hinges fitting pack



See the full measuring guide here



Installation Guide | Click Here ►

How to fit your wooden gates?
