Gloucester Wooden Driveway Gates | 3ft High

Buy Online Today

Gloucester Wooden Driveway Gates | 3ft High

The timeless 3ft High Gloucester Double Wooden Gates are suitable for any residential driveway. Available in various sizes, they will add charm and character to your home at a very competitive online price, making them one of our most popular designs.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Select the Size You Need (gates are sold as a pair):

Other Options & Accessories

Double Gate Fittings Pack:
Wooden Posts:

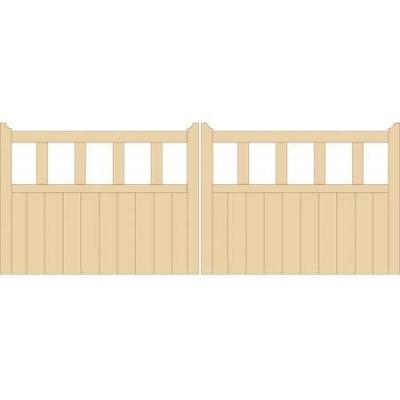

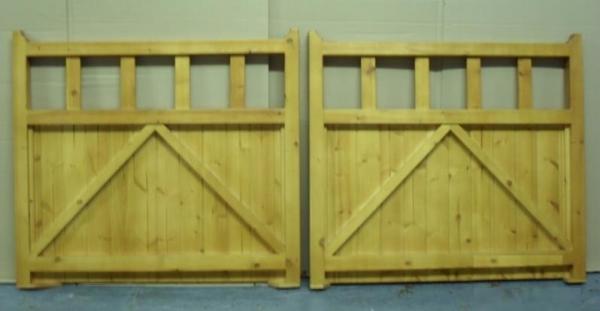

The Gloucester 3ft high Wooden Driveway Gates will provide a combination of style and security at a fantastic price, making them one of our best-selling designs. Available to buy online in a range of sizes from 7ft – 12ft. They are handmade in the UK using Scandinavian Redwood and have a smooth planed finish ready to be stained or painted to the colour of your choice before installation. Suitable for residential driveway entrances, the Gloucester double gates features a 70mm thick framework, 3 x horizontal rails and diagonal bracing to prevent twisting and sagging of the timber. For additional privacy, the bottom section of each gate has tongue and groove boarded panels set flush with the framework. The top section then features open pales for a traditional appearance.

Gloucester 3ft High Double Wooden Driveway Gates Specification

  • Wooden gates create a charming look to the main entrance of your property.

  • Constructed to high standards to ensure years of reliable use.

  • Mortise and tenon joints create strength and rigidity.

  • Traditional pale sections to the top of each gate increases visual appeal.

  • Built using a 70mm x 70mm framework and 95mm x 14mm tongue and groove timber boards.

  • Double gates are supplied with a smooth planed timber finish ready to be painted or stained.

  • Gloucester wooden driveway gates are suitable for automation (some modifications may be required).

  • Hinges, latches and drop bolts are available to order separately.


Physical Height

  • 920mm (3ft)



Ordering Sizes

Select the width required from the menu above. Please be aware the width measurement represents the combined size of a pair of Gloucester Driveway Gates placed side by side. We have made no allowance for the space needed for the hinges, fittings posts or ground clearance.

Measuring Guide - Click here



Do you Need Assistance Selecting the Right Size Gloucester Driveway Gates?

If you need assistance choosing the proper size gate for your application, please see our measuring guide or contact us for advice. A wide range of additional information, including our ordering guide, buying guide, installation guide and frequently asked questions, is also available online.

Find out about our made to measure gates by clicking here



Useful Information About the Gloucester Wooden Driveway Gates

Width Dimensions: Wooden driveway gates are sold as a pair. The widths shown in the drop-down menu therefore refer to the physical width of both gates when placed side by side. This means each pair will comprise of the following:

  • 7ft pair = 2 x 3ft 6”

  • 8ft pair = 2 x 4ft

  • 9ft pair = 2 x 4ft 6”

  • 10ft pair = 2 x 5ft

  • 11ft pair = 2 x 5ft 6”

  • 12ft pair = 2 x 6ft

Height Dimensions: The physical height is measured from the underside of the gates to the highest point. This measurement does not make any allowance for ground clearance.

Fittings: Wooden driveway gates are supplied as standard without the necessary hinges, latch and drop bolt. If you need to add these items to your order you should select the relevant fitting pack from the options and accessories menu at the top of the page.

Posts: We recommend the use of wooden posts when installing the driveway gates. If these are required, please select the appropriate size post to suit your requirements from the menu above. For free standing installations, in ground posts will be required or where an existing wall or other support structure is in place the use of wall mounted posts is acceptable. In either instance, the opening between the posts will need to be 40mm wider than the physical width of the gates to allow sufficient room for the hinges, latch and to prevent binding of the timbers.

Finish: The Gloucester wooden driveway gates are manufactured from smooth planed untreated softwood and must therefore be treated with an appropriate stain or paint prior to becoming exposed to the elements. Failure to carry out this treatment will result in rot and decay.

Installation: We recommend the use of hook and band hinges when installing the gates. For inward opening layouts, the hinges should be fixed to the back of the gates using the top and bottom horizontal rails. For outward opening gates, the hinges should be mounted on the front face. For more information about fitting the gates please refer to the installation guide.

Hinges and Fittings for Wooden Gates - Click Here

Gloucester wooden gate measuring information

Calculating the Size | Installations Beween Brick Walls

double wooden gate measuring diagram between brickwork

Calculating the Size | Freestanding Installations Using Wooden Posts

What Size Opening will the Gloucester 3ft High Wooden Driveway Gates Require Between the Wooden Posts?

If you are fitting the wooden gates between existing timber posts (with the hinges fitted on the back face of the gate/post), then we recommend the following space is available.​

Physical Width of the Pair of Gates Width of Opening Required Between Posts
2130mm 2170mm
2440mm 2480mm
2740mm 2780mm
3050mm 3090mm
3350mm 3390mm
3660mm 3700mm

NB* sizes are based on the options shown in the drop-down menu.

What If I Need to Add Wooden Posts?

It is important to make allowances for the additional space required for installations that require wooden posts.

This is calculated in the following way.

The physical width of gates + width of posts (2 x 100mm is sufficient if using wall-mounted posts or 2 x 150mm if freestanding posts are used)

+ 40mm (space needed for hinges, latch and opening tolerances)

= Total Overall Space Required


A pair of 3350mm gates combined with 2 x 100mm posts will require a total overal space of 3590mm.

What Size Hinges and What Fittings Do I Need to Complete the Installation?

We recommend using 18" or 24" hook and band hinges (depending on the size of the gates you order). We also suggest you add 1 x ring latch and a minimum of 1 x drop bolt to hold the gates closed.

Gate fitting pack for double wooden gates



Installation Guide ►

View the wooden gate measuring guide here

We can offer you the following posts, fittings and gate furniture to aid with installation.

Need help figuring out what you need? If you need help choosing the correct items to suit your requirements or have a technical question, please email or complete our enquiry form.
