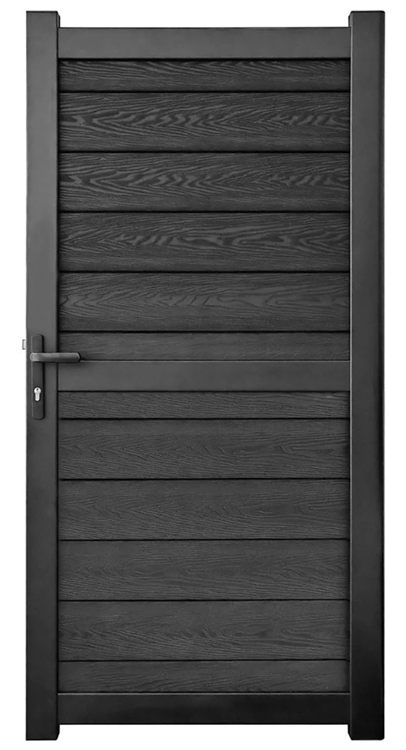

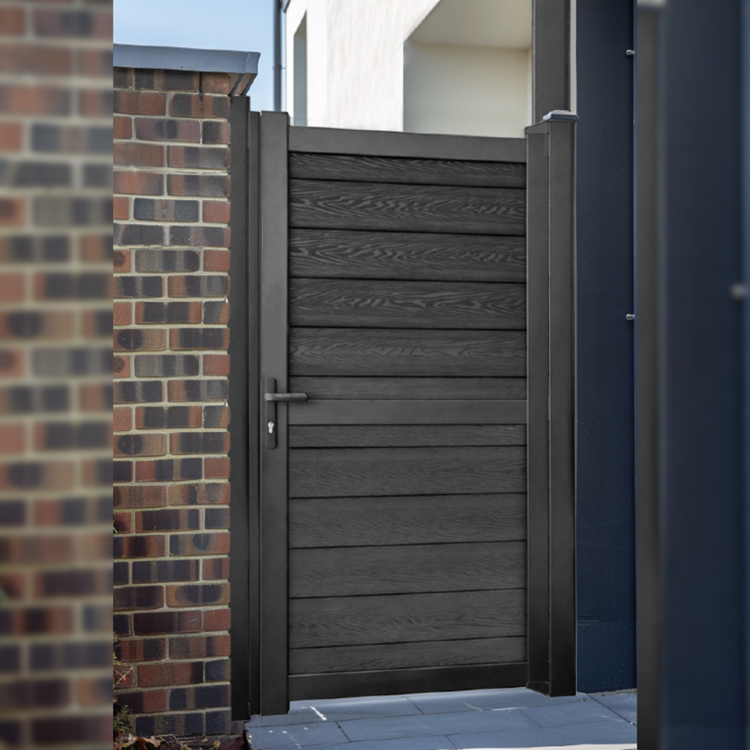

Esher Composite Pedestrian Garden Gate | Horizontal Infill

Enhance the entrance to your home or garden with the Esher Composite Pedestrian Side Gate. Featuring horizontal WPC (wood-plastic composite) infill boards and a flat top rail, this contemporary side gate offers a stylish and practical solution for modern properties and will undoubtedly add a clean, architectural touch to any garden or pedestrian entrance. Manufactured with a high-quality, powder-coated aluminium frame, the Esher gate is designed to withstand the elements and requires virtually no maintenance, making it the ideal choice for a low-maintenance garden gate. The solid panel construction provides excellent privacy and security benefits, while the durable composite materials resist warping, rotting, and fading over time. Available in a wide range of sizes and finished in either black or anthracite grey, it’s suitable for pedestrian access onto driveways, side passages, or walled garden entrances. So, whether you're upgrading an existing gate or completing a new boundary layout, the Esher aluminium pedestrian gate combines performance, curb appeal and affordability.

Esher Composite Pedestrian Garden Gate Specification

• Modern horizontal panel design with flat top rail will suit any style of property.

• Strong, rust-resistant aluminium frame requires virtually no maintenance.

• Solid WPC composite boards provide excellent privacy and security benefits.

• Weatherproof aluminium powder-coated finish delivers long-lasting durability.

• Easy to install.

• Ideal for side entrances, garden paths, and pedestrian access points.

• Suitable for left or right-hand hanging (orientation is set when installing).

• Includes 2 x adjustable wall-mounted hinges, 1 x floor-mounted hinge, 2 x gate handles, 1 x euro barrel lock with 3 x keys, and a full-length lock keep as standard.

• Available in a wide range of sizes.

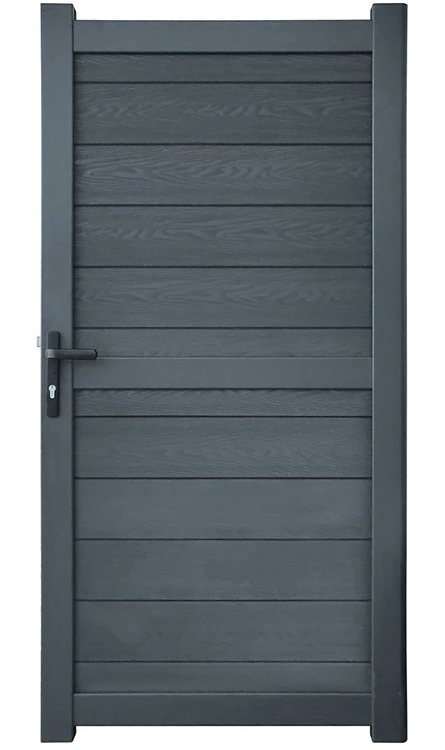

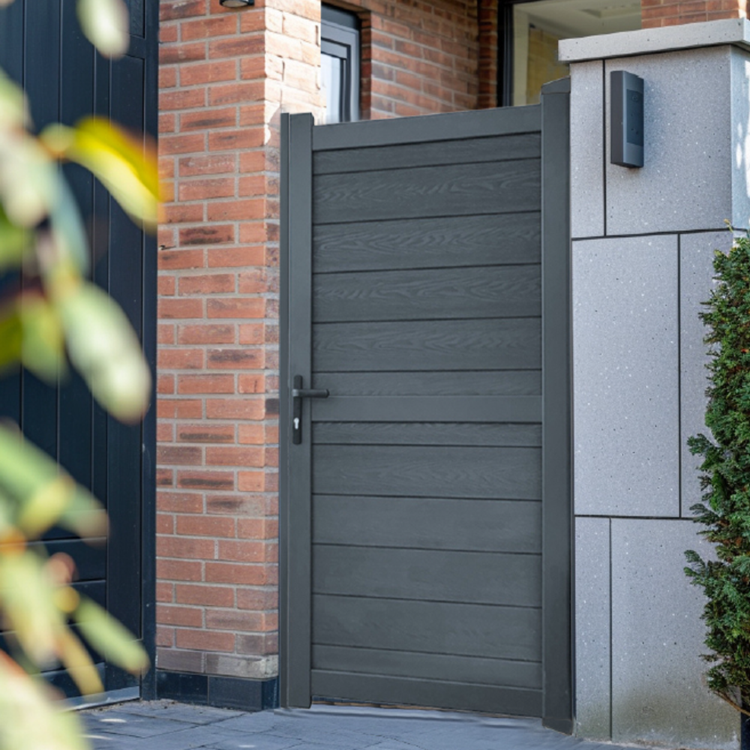

• Powder-coated aluminium frame and textured composite boards are available in Jet Black (RAL9005) or Anthracite Grey (RAL7016)

Ordering Sizes

The dimensions shown in the drop-down menu represent the actual physical width and height of the gate only. They do not include the additional clearance required for hinges and the locking mechanism.

To ensure a proper fit, please refer to the table below to determine the correct opening size needed between your walls, posts, or support structures.

Opening Size Requirements

Physical Width = 800mm (this requires an opening of 830mm between your walls or posts)

Physical Width = 850mm (this requires an opening of 880mm between your walls or posts)

Physical Width = 900mm (this requires an opening of 930mm between your walls or posts)

Physical Width = 950mm (this requires an opening of 980mm between your walls or posts)

Physical Width = 1000mm (this requires an opening of 1030mm between your walls or posts)

Physical Width = 1050mm (this requires an opening of 1080mm between your walls or posts)

Physical Width = 1100mm (this requires an opening of 1130mm between your walls or posts)

Physical Width = 1150mm (this requires an opening of 1180mm between your walls or posts)

Physical Width = 1200mm (this requires an opening of 1230mm between your walls or posts)

​

Are You Ordering Aluminium Posts?

If you need support posts, please note they are supplied undrilled. This allows you to position the fittings wherever needed for your specific installation. Each post comes with a base plate for surface mounting on concrete or other hard ground. Alternatively, the posts can be set into the ground and secured with concrete for added stability.

Confused About Ordering Sizes?

If you're unsure about which size to order or need assistance, please contact us before making your purchase. Ordering the wrong size can be costly and time-consuming to fix.

Installation Instructions

Please refer to the installation instructions on the following pages to learn how to properly fit the gate.

How to Install onto Brickwork ►	How to Install onto Posts ►
