Sunningdale Composite Pedestrian Garden Gate | Vertical Infill

The Sunningdale Composite Pedestrian Gate with vertical infill delivers both style and functionality to modern properties. Its robust powder-coated aluminium frame paired with vertical WPC composite boards ensures durability with minimal upkeep. Available to order online in multiple size options, it will make a great addition to any residential location where privacy, security, and good looks are required.

Ordering Sizes

The sizes in the drop-down menu refer only to the dimensions of the gate alone. Please note that additional clearance is required for the hinges and locking mechanism. Before ordering, check the sizing chart in the product description to ensure you understand the exact opening width needed between your posts, walls, or mounting framework.

Delivery:
Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Select the Size You Need:

Other Options & Accessories

Select the Colour:

Select Your Posts:

£386.00 inc VAT (excl delivery)
£321.67 ex VAT

Description

The Sunningdale Composite Pedestrian Gate will deliver a contemporary twist on a classic style. Manufactured with a durable, low-maintenance aluminium frame and composite infill boards, the gate will create a bold visual statement within any pedestrian entrance. Ideal for enhancing privacy and security in residential settings, it is available in a wide range of sizes to suit your needs and comes supplied as standard with two wall-mounted hinges and one floor-mounted hinge, allowing you to select the best installation method for your opening. The gate also includes a built-in key lock for added security and convenience, ensuring easy and secure access to your property.

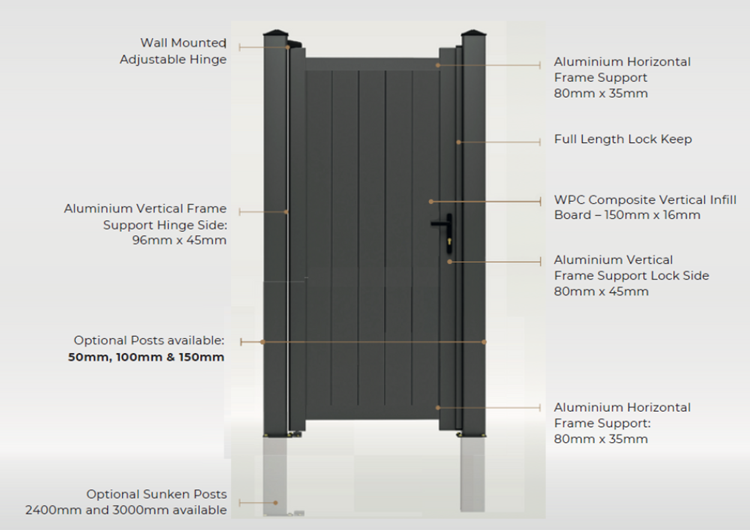

Sunningdale Composite Garden Gate Specification

The solid infill provides full privacy benefits.
Low-maintenance composite boards set in a vertical configuration give a clean, modern appearance.
The durable aluminium framework resists twisting or warping
Suitable for left or right-hand hanging (orientation is set when installing).
Includes 2 x adjustable wall-mounted hinges, 1 x floor-mounted hinge, 2 x gate handles, 1 x euro barrel lock with 3 x keys, and a full-length lock keep as standard.
Available in a wide range of sizes,
Powder-coated aluminium frame and textured composite boards are available in Jet Black (RAL9005) or Anthracite Grey (RAL7016)

Ordering Sizes

The drop-down measurements show the exact size of the gate. These dimensions do not include the extra space needed for hinges, locks or posts.

Please check the table below to find out how much space you need between your posts or walls.

Opening Size Requirements

Physical Width = 800mm (this requires an opening of 830mm between your walls or posts)

Physical Width = 850mm (this requires an opening of 880mm between your walls or posts)

Physical Width = 900mm (this requires an opening of 930mm between your walls or posts)

Physical Width = 950mm (this requires an opening of 980mm between your walls or posts)

Physical Width = 1000mm (this requires an opening of 1030mm between your walls or posts)

Physical Width = 1050mm (this requires an opening of 1080mm between your walls or posts)

Physical Width = 1100mm (this requires an opening of 1130mm between your walls or posts)

Physical Width = 1150mm (this requires an opening of 1180mm between your walls or posts)

Physical Width = 1200mm (this requires an opening of 1230mm between your walls or posts)

Height Dimensions

Your wall or posts must be a minimum of 100mm taller than the gate you ordered. This ensures sufficient space for the top and bottom hinges to be properly installed.

What is Included with the Gate?

1 x Lock / Handle Set (with keys)

1 x Full Length Lock Keep

2 x Wall Mounted Adjustable Hinges

1 x Floor Mounted Hinge

Do you Need to Buy Aluminium Posts?

Posts come undrilled, giving you complete flexibility to position fittings exactly where needed. Each post includes a base plate for easy mounting to concrete or other solid surfaces. You can also set posts directly into the ground and secure them with concrete.

Specification

The aluminium posts feature a 3.5mm thick profile for reliable gate support. They come in matching colours to your gate and include black post caps for weather protection.

Confused About Ordering Sizes?

Contact us before ordering if you have questions about sizing or need more information. Incorrect sizing will lead to costly delays and replacement expenses.

Installation Instructions

You can review the installation instructions below before ordering to understand how the gate is fitted.

How to Install onto Brickwork ►	How to Install onto Posts ►
