Derbyshire Wooden Driveway Gates | 3ft High

Buy Online Today

Derbyshire Wooden Driveway Gates | 3ft High

These beautiful 3ft high double wooden drive gates are handmade in the UK. They feature curved top rails for added visual appeal and are available to buy online in several sizes to suit most residential applications.

Delivery:
Please allow approximately 3 - 4 weeks lead time for delivery of this product.

Physical Width (of the pair):

Other Options & Accessories

Double Gate Fittings Pack:
Wooden Posts:

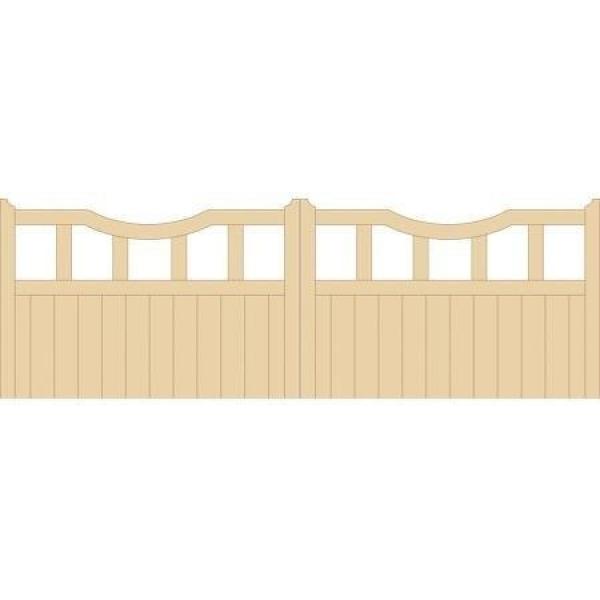

The 3ft high Derbyshire Wooden Driveway Gates feature an eye-catching top rail which will create a bold statement to the entrance of any residential property. Handmade in the UK from slow-grown Scandinavian Redwood, they are finished with fine attention to detail; they are available to buy online in a selection of standard sizes from 7ft – 12ft making them ideal for most driveway applications. The Derbyshire double driveway gates feature a 70mm thick mortise and tenon jointed framework, 3 x horizontal rails and diagonal bracing on the back for rigidity and to make them capable of meeting the rigorous demands of regular use. The bottom section of each gate features tongue and groove panels, and the top has a curved rail and open pales for a striking appearance making them an excellent all-around design that will meet the needs of most property owners.

Derbyshire 3ft High Timber Driveway Gates Specification

  • Suitable for any residential driveway where improved security is a requirement.

  • Manufactured using traditional joinery techniques including a mortise and tenon jointed frame.

  • Constructed using a 70mm x 70mm framework and 95mm x 14mm tongue and groove infill boards.

  • Wooden driveway gates are supplied with a smooth planed natural timber finish.

  • Suitable for automation (some modification may be required).

  • Hinges, latches and drop bolts designed for use with the Derbyshire wooden gates are available to order separately.



Physical Height

  • 920mm (3ft)






Ordering Sizes

Select the width required from the menu above. Please be aware the sizes represent the physical width of a pair of Derbyshire Wooden Gates placed side by side. We have made no allowance for the space needed for the hinges and fittings.

Measuring Guide - Click here






Do you Need Help Ordering Derbyshire Wooden Driveway Gates Online?

Speak to Garden Gates Direct today by calling 0844 804 5577 or email your requirements to sales@gardengatesdirect.co.uk and we will send you a reply as soon as possible. For further online guidance we suggest you refer to the buying guide, ordering guide and frequently asked questions section of our online store. Alternatively for installation advice click the links below.

Find out about our made to measure gates by clicking here

Looking to Buy the Same Design for Other Areas of the Home and Garden?

Click the links below to view the other wooden gates for sale within the Derbyshire range.




Useful Information About the Derbyshire Double Wooden Drive Gates

Width Dimensions: Wooden driveway gates are sold as a pair. The widths shown in the drop-down menu therefore refer to the physical width of both gates when placed side by side. For clarification purposes, each pair will be made up as follows:

  • 7ft pair = 2 x 3ft 6”

  • 8ft pair = 2 x 4ft

  • 9ft pair = 2 x 4ft 6”

  • 10ft pair = 2 x 5ft

  • 11ft pair = 2 x 5ft 6”

  • 12ft pair = 2 x 6ft

Height Dimensions: The physical height is measured from the underside of the gates to the highest point. This measurement does not make any allowance for ground clearance.

Fittings: The Derbyshire wooden driveway gates do not include the hinges, latch, and drop bolt as standard. Should you need to order these items, please choose the appropriate fittings from the options and accessories menu above.

Posts: When installing the gates, we recommend using wooden posts. If these are not currently in place and you need to purchase these items, you can do so by selecting from the menu above. In ground posts are necessary for freestanding installations, however wall mounted posts are permitted when an existing wall or other support structure is present. To enable enough room for the hinges, latch, and to prevent the timbers from binding, the opening between the posts must be 40mm larger than the actual width of the gates.

Finish: The Derbyshire driveway gates are manufactured from slow grown Scandinavian Redwood and are not treated in any way to provide protection against rot and decay. It is therefore essential that all exposed surfaces are stained or painted prior to exposure to the elements.

Installation: To ensure the best level of support for the gates, we only recommend the use of hook and band hinges. These must be an appropriate size to provide adequate support. The band portion of the hinge should be mounted to the back of the gates along to the top and bottom horizontal rail and the hook portion should fit to the back of the timber post. For further information about fitting the gates please read our installation guide.

Hinges and Fittings for Wooden Gates - Click Here

Double Wooden Gate Size Guide




What size opening will the Derbyshire 3ft High Wooden Drive Gates fit into?

If you are fitting the wooden gates between existing timber posts (with the hinges fitted on the back face of the gate/post) then we recommend the following space is available.

  • Physical Width of 2130mm = Fits an opening of approximately 2170mm - 2180mm

  • Physical Width of 2440mm = Fits an opening of approximately 2480mm – 2490mm

  • Physical Width of 2740mm = Fits an opening of approximately 2780mm – 2790mm

  • Physical Width of 3050mm = Fits an opening of approximately 3090mm – 3100mm

  • Physical Width of 3350mm = Fits an opening of approximately 3390mm – 3400mm

  • Physical Width of 3660mm = Fits an opening of approximately 3700mm – 3710mm

NB* sizes are based on the options shown in the drop down menu.

What if i need to add wooden posts?

For installations that require wooden posts it is important to make allowances for the additional space required. The calculation is worked out in the following way.

Physical width of gates + width of posts (2 x 100mm is sufficient if using wall mounted posts or 2 x 150mm if freestanding posts are used) + 40/50mm (space needed for hinges, latch and opening tolerances)

Example: a pair of 3050mm gates combined with 2 x 100mm posts will require the existing gap between pillars to be approximately 3290mm - 3300mm.

What size hinges and what fittings do i need to complete the installation?

We recommend using 18", 24" or 36" hook and band hinges (depending on the size of the gates you order). We also suggest you add 1 x ring latch and a minimum of 1 x drop bolt to hold the gates closed.

To complement these quality hand made timber gates we are able to offer you the following posts, furniture and accessories.

If you don’t know what items to order or need help and advice selecting the correct hinges for a particular gate sizes please contact us by phone or email and we will be on hand to offer support.
