Suffolk Wooden Estate Gates | 6ft High

Buy Online Today

Suffolk Wooden Estate Gates | 6ft High

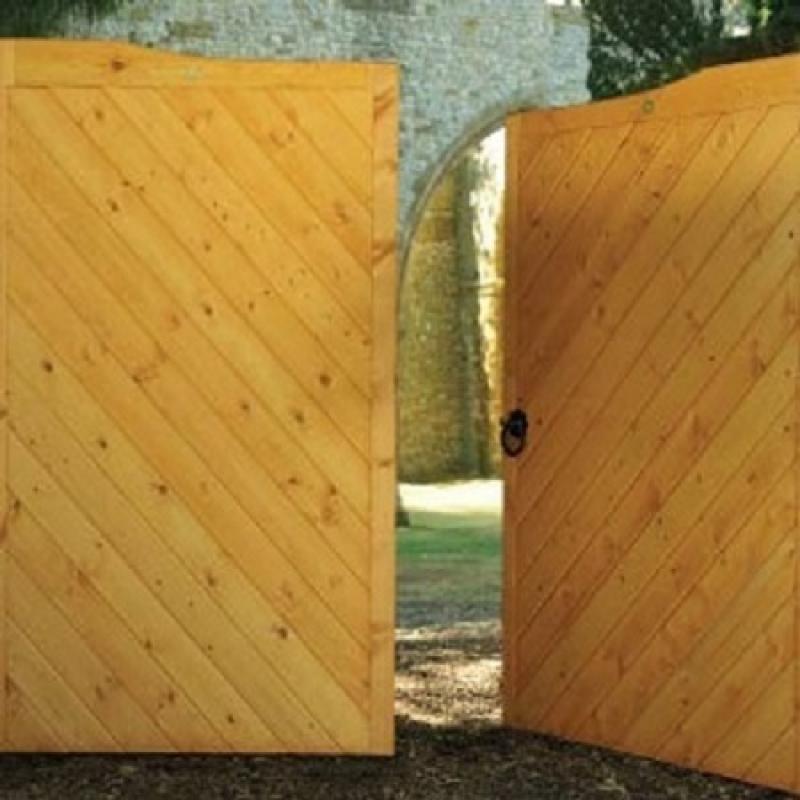

The Suffolk Wooden Estate Gates are handcrafted in the UK with meticulous attention to detail. Built to produce exceptional strength, performance, and aesthetic appeal, they have a robust framework and infill boards set in a diagonal arrangement to create a defining feature. They can be ordered online in various sizes to suit most residential driveway requirements and are truly outstanding value for money.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Select the Size You Need (gates are sold as a pair):

Other Options & Accessories

Double Gate Fittings Pack:
Wooden Posts:

Suffolk Wooden Estate Gates feature a diagonally boarded timber design to create a splendid statement to any driveway or large opening entrance. Manufactured in the UK to industry-leading standards, these attractive double drive gates have a heavy-duty mortise and tenon jointed framework combined with tongue and groove infill boards to ensure strength, stability and durability. The shallow archtop profile helps provide additional visual appeal making them an excellent option for any style-conscious property owner looking to add security to the main entrance of their driveway.

Suffolk Wooden Estate Gates - Make a Bold Statement at an Affordable Price

  • Timber estate gates are handmade in the UK by skilled craftsmen

  • Finished with a fine attention to detail

  • Double gates feature a traditional mortise and tenon construction for added strength and durability

  • Manufactured using PEFC certified Scandinavian Redwood

  • Supplied with a smooth planed untreated timber finish ready for painting or staining prior to installation

  • Can be automated (some modifications may be required depending on the motor you use)

  • Hinges, fittings and accessories are available to order separately


Physical Height

  • 1830mm (6ft)



Ordering Sizes

Select the option required from the menu above. Please be aware the width dimensions represent the combined physical size of a pair of Suffolk Wooden Gates placed side by side. We have made no allowance for the space needed for the hinges and fittings.

Measuring Guide - Click here for help with sizes



Need Help & Advice Prior to Buying Suffolk Estate Gates Online?

If you are confused about what size to order or have a question you need answering please send an email to or fill in our online enquiry form and we will get back to you as soon as we can. For further online advice we recommend you take a look at the buying guide, ordering guide and frequently asked questions pages of our online store. If you need help with installation why not take a look at the links below.

Find out about our made to measure gates by clicking here



Useful Information About the Suffolk Wooden Estate Gates

Width Dimensions: This measurement is the actual width of both gates when placed side by side. To avoid any confusion when placing your order, this means the sizes shown in the drop-down menu at the top of the page comprise the following:

  • 7ft pair = 2 x 3ft 6”

  • 8ft pair = 2 x 4ft

  • 9ft pair = 2 x 4ft 6”

  • 10ft pair = 2 x 5ft

  • 11ft pair = 2 x 5ft 6”

  • 12ft pair = 2 x 6ft

Physical Height: This dimension is from the bottom of the gates to the top of the highest point. We have not included the space you will need for ground clearance as this will vary according to your driveway layout. As a guide, we usually recommend leaving a gap of around 50mm (2”)

Fittings: If you wish to purchase a compatible fitting pack (containing the hinges, latch, and drop-bolt), please choose from the options and accessories menu at the top of the page.

Posts: Wooden posts should be used to fit the gates. For installations between existing brickwork, the use of wall-mounted posts is the easiest solution. Alternatively, you will need to set the posts into the ground for any other installation type. To factor in the required space for the hinges and latch, it is essential to note that the gap formed between the posts should be 40mm wider than the width of the gates you are fitting.

Finish: The timber used to manufacture the Suffolk gates is smooth planed Scandinavian Redwood. For protection against rot and decay, all exposed surfaces must be stained or painted before installation.

Installation: You should only use the appropriate size hook and band-type hinges when installing the gates. These must be attached to the horizontal top and bottom rails for optimum support. For more details, refer to the installation guide.

How to measure for double timber gates


Do you need to allow for wooden posts?

If your installation requires wooden posts then you will need to take into account the additional space required. The calculation is worked out in the following way.

Physical width of gates + width of posts (2 x 100mm is sufficient if using wall mounted posts or 2 x 150mm if freestanding posts are used) + 40/50mm (space needed for hinges, latch and opening tolerances)

What size hinges and what fittings do i need to complete the installation?

We recommend using 2 x (pairs) 24” hook and band hinges. 1 x ring latch and a minimum of 1 x drop bolt to hold the gate closed will also be required.

If you need to purchase posts, gate furniture and any accessories that are compatible with the Suffolk double gates please choose from the following options.

If you are unsure what items you need, have a question about the products or need help with sizes please call us on 0844 804 5577 or email
