Oxfordshire Aluminium Pedestrian Garden Gate | Vertical Infill & Open Pales

Buy Online Today

Oxfordshire Aluminium Pedestrian Garden Gate | Vertical Infill & Open Pales

The Oxfordshire Aluminium Pedestrian Gate is available in a selection of sizes and is an excellent addition to any entrance around your home. With vertical infill boards combined with open pale sections, this stunning aluminium gate design includes a low maintenance powder coated paint finish as standard in a choice of black or anthracite grey.

Ordering Sizes

Please be aware that the dimensions displayed in the drop-down menu represent the physical width and height of the gate. These measurements do not include the added space required for the hinges and lock. Before placing your order, refer to the table below to confirm the precise gap size between your brickwork, posts, or other support structures.

Please allow approximately 3 - 4 weeks lead time for delivery of this product.

Select the Size You Need:

Other Options & Accessories

Select the Colour:
Select Your Posts:

The Oxfordshire Aluminium Pedestrian Gate is a great option for any property owner looking for a low-maintenance gate design that has a traditional appearance. Suitable for numerous applications, it includes a durable aluminium construction, vertical infill boards in the bottom section, and open pales at the top to allow light and wind to pass through easily. It is available in a wide range of width and height configurations to suit individual requirements and comes in a choice of hardwearing powder-coated paint finishes as standard.

Oxfordshire Aluminium Garden Gate Specification

  • Suitable for a wide range of property types and pedestrian entrances.

  • Aluminium does not bend or warp.

  • Perfect for coastal properties or high-saline environments.

  • Select from a variety of widths and height configurations.

  • Available in black or anthracite powder-coated finish.

  • Includes hinges, a euro-cylinder lock and a handle as standard.

  • Easy to install (includes detailed fitting instructions).

  • The hinges can be surface mounted to existing brickwork or attached to compatible posts.



Ordering Sizes

The measurements detailed in the drop-down menu denote the physical width and height of the gate. Additional space is needed for the hinges and lock.

Please refer to the table below to find the precise gap size you need.

Opening Size Requirements

Gap size diagram

Physical Width = 900mm (this requires an opening of 930mm between your walls or posts)

Physical Width = 1000mm (this requires an opening of 1030mm between your walls or posts)

Physical Width = 1100mm (this requires an opening of 1130mm between your walls or posts)

Physical Width = 1200mm (this requires an opening of 1230mm between your walls or posts)

Height Dimensions

You must ensure that the walls or posts are at least 100mm taller than the physical height of the gate you order. This additional height is required to accommodate the top and bottom hinges. If you cannot accommodate this additional space requirement, you must select a gate with a shorter height.



What is Included with the Gate?

1 x Lock / Handle Set (with keys)

1 x Full Length Lock Keep

2 x Wall Mounted Adjustable Hinges

1 x Floor Mounted Hinge


Do you Need to Buy Aluminium Posts?

Aluminium gate posts include a base plate for floor-mounted installation. Alternatively, they can also be installed straight into the ground. The posts are not pre-drilled with holes for the hinges, allowing the installer greater positioning flexibility.


Aluminium posts have a 3.5mm thick profile and are available in black or anthracite grey (choose the required colour from the menu above). They can support any of the Oxfordshire gate's available width and height combinations. Each one includes a black postcap to keep water out.



Confused About Ordering Sizes?

Please get in touch with us before purchasing the gate if you do not know what size to order. Ordering an incorrect size will be costly and time-consuming to correct.

Made to measure sizes are available



Installation Instructions

Refer to the instructions below to see how the gate is installed.

How to Install onto Brickwork ►

How to Install onto Posts ►

How to install an aluminium gate to brickwork How to install an aluminium gate to posts



Important Delivery Information

We can only deliver our aluminium gates to mainland England and Wales, and our standard delivery charge will be applied to the basket when ordering. If you live in Scotland, you must contact us before ordering, as an additional charge will be applicable (this will vary according to your postcode).

Colour Chart

Colour chart

Handle and Lockset

Handle and lockset

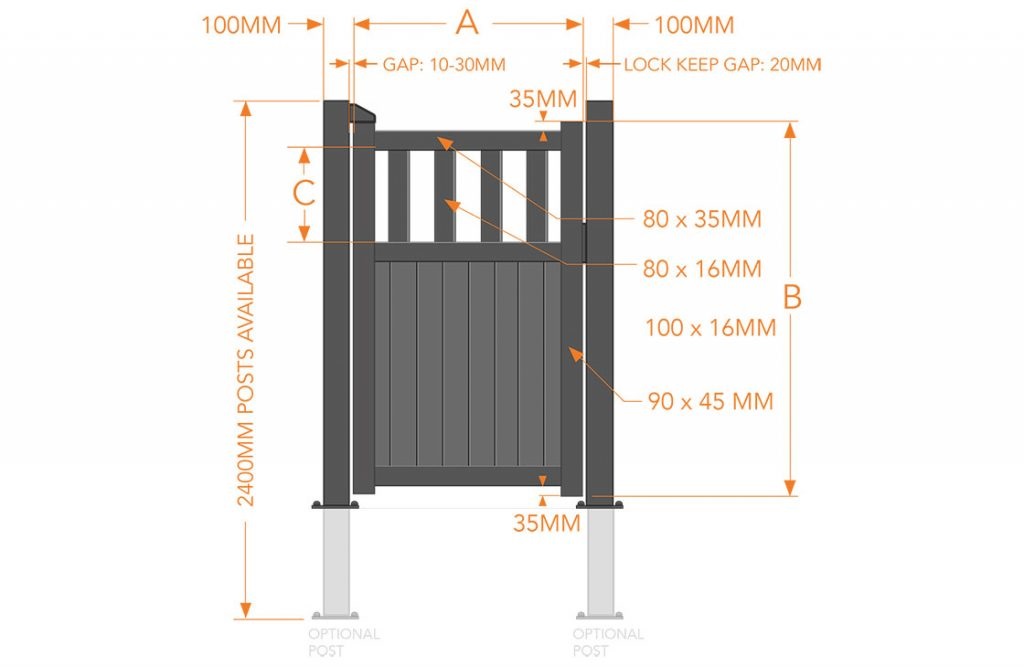

Component Sizes

Oxfordshire specification drawing
