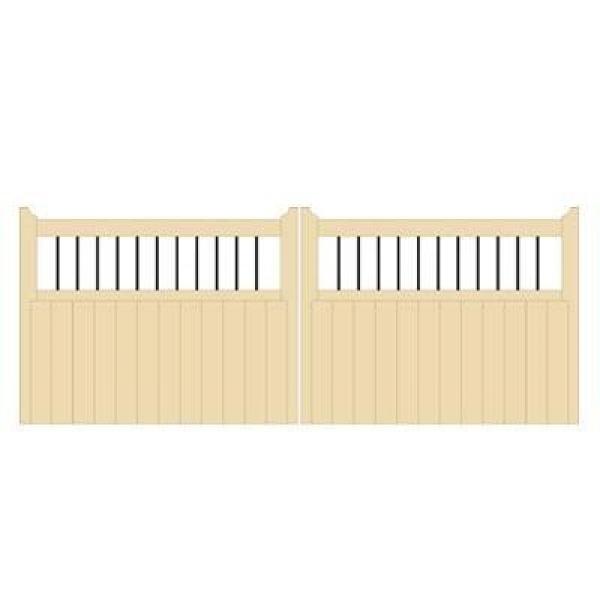

Bordeaux Wooden Driveway Gates | 4ft High

Buy Online Today

Bordeaux Wooden Driveway Gates | 4ft High

Available in assorted sizes, the Bordeaux wooden gates feature a mix of timber and metal components to create a visually appealing design that will add charm and character to any outdoor location.

Delivery:
Please allow approximately 3 - 4 weeks lead time for delivery of this product.

Physical Width (of the pair):

Other Options & Accessories

Double Gate Fittings Pack:
Wooden Posts:

Bordeaux 4ft High Wooden Driveway Gates blend the charm and character of natural timber with the starker lines of steel to create an exquisite overall appearance. Available to buy online in sizes ranging between 7ft – 12ft, these stunning double wooden gates are specifically designed with strength and security in mind, making them perfect for any residential driveway. Handmade in the UK from untreated slow grown Scandinavian Redwood, the Bordeaux design has a 70mm thick framework, horizontal rails and diagonal bracing for additional support and rigidity. The bottom portion of the gates are clad with vertical tongue, and groove boards set flush with the frame, whilst the open section at the top has 16mm metal infill bars primed black to create a contrasting appearance making them an excellent choice for both modern and traditional properties alike.

Bordeaux Timber Driveway Gates Specification

  • The Bordeaux has a visually appealing design will appeal to most homeowners tastes.

  • Suitable for a variety of residential applications.

  • Handmade in the UK by skilled craftsmen in a variety of sizes.

  • Constructed with a 70mm x 95mm heavy duty mortise and tenon jointed framework along with 95mm x 14mm tongue and groove wooden boards and 16mm zinc plated solid metal infill bars (primed black).

  • Bordeaux wooden driveway gates are suitable for automation (some modifications may be required).

  • Gates are supplied in a smooth planed timber finish ready to be painted, stained or varnished prior to installation.

  • Hinges, latches and drop bolts are available to order separately.



Physical Height

  • 1220mm (4ft)






Ordering Sizes

Select the option required from the menu above. The sizes represent the physical width of a pair of gates. We have made no allowance for the space needed for the hinges, latch or posts.

View the measuring guide here






Do you Need Help Selecting the Right Size?

To work out the best size to order please read the measuring guide or call us now on 0844 804 5577 and we will work this out for you. Alternatively for general queries please contact us using the enquiry form or refer to the frequently asked questions.

Find out about our made to measure gates by clicking here






Useful Information About the 4ft High Bordeaux Double Wooden Gates

Width Dimensions: The Bordeaux wooden gates are supplied as a pair. The widths shown in the menu above refer to the actual width of both gates when placed next to each other. To avoid confusion, this means that each pair comprises of the following:

  • 8ft pair = 2 x 4ft

  • 9ft pair = 2 x 4ft 6”

  • 10ft pair = 2 x 5ft

  • 11ft pair = 2 x 5ft 6”

  • 12ft pair = 2 x 6ft

Height Dimensions: No allowance has been made for the ground clearances that will be required. The height is measured from the underside of the gates to the highest point.

Fittings: To add the relevant fitting pack to your order please choose the appropriate size hinges from the options and accessories menu at the top of the page.

Posts: When fitting the gates we recommend the use of wooden posts. These can be either wall mounted or may be set into the ground using concrete. For optimal results the gap formed between the posts should be 40mm larger than the size of the gates you order. This will then provide you with the space needed for the hinges and will prevent them binding against the posts during operation.

Finish: The Bordeaux design is constructed using smooth planed Scandinavian Redwood. The timber has not been treated in anyway therefore it is essential that the gates are stained or painted prior to installation.

Installation: The use of hook and band hinges are recommended when installing the gates. To provide the best support, we recommend mounting the hinges to the top and bottom horizontal rails. You can find out more general information about fitting by referring to our installation guide.

Fittings Packs & Accessories for Wooden Drive Gates

How to measure the opening




What size opening will the Bordeaux 4ft High Wooden Driveway Gates fit into?

If you are fitting the wooden gates between existing timber posts (with the hinges fitted on the back face of the gate/post) then we recommend the following space is available.

  • Physical Width of 2130mm = Fits an opening of approximately 2170mm - 2180mm

  • Physical Width of 2440mm = Fits an opening of approximately 2480mm – 2490mm

  • Physical Width of 2740mm = Fits an opening of approximately 2780mm – 2790mm

  • Physical Width of 3050mm = Fits an opening of approximately 3090mm – 3100mm

  • Physical Width of 3350mm = Fits an opening of approximately 3390mm – 3400mm

  • Physical Width of 3660mm = Fits an opening of approximately 3700mm – 3710mm

NB* sizes are based on the options shown in the drop down menu.

What if i need to add wooden posts?

For installations that require wooden posts it is important to make allowances for the additional space required. The calculation is worked out in the following way.

Physical width of gates + width of posts (2 x 100mm is sufficient if using wall mounted posts or 2 x 150mm if freestanding posts are used) + 40/50mm (space needed for hinges, latch and opening tolerances)

Example: a pair of 3050mm gates combined with 2 x 100mm posts will require the existing gap between pillars to be approximately 3290mm - 3300mm.

What size hinges and what fittings do i need to complete the installation?

We recommend using 18", 24" or 36" hook and band hinges (depending on the size of the gates you order). We also suggest you add 1 x ring latch and a minimum of 1 x drop bolt to hold the gates closed.

To complement these attractive modern timber gates we can offer you the following items.

If you would like help selecting the appropriate posts or hinges or need help with gate sizes feel free to get in touch with us on 0844 804 5577 or email your questions to sales@gardengatesdirect.co.uk.
