5 Bar Metal Estate Fencing Panel

The 5 Bar Metal Estate / Farm Fence Panels provide an affordable and effective way to secure your property. Suitable for various applications, including farms, estates, and rural properties, they deliver the perfect combination of timeless style and functionality.

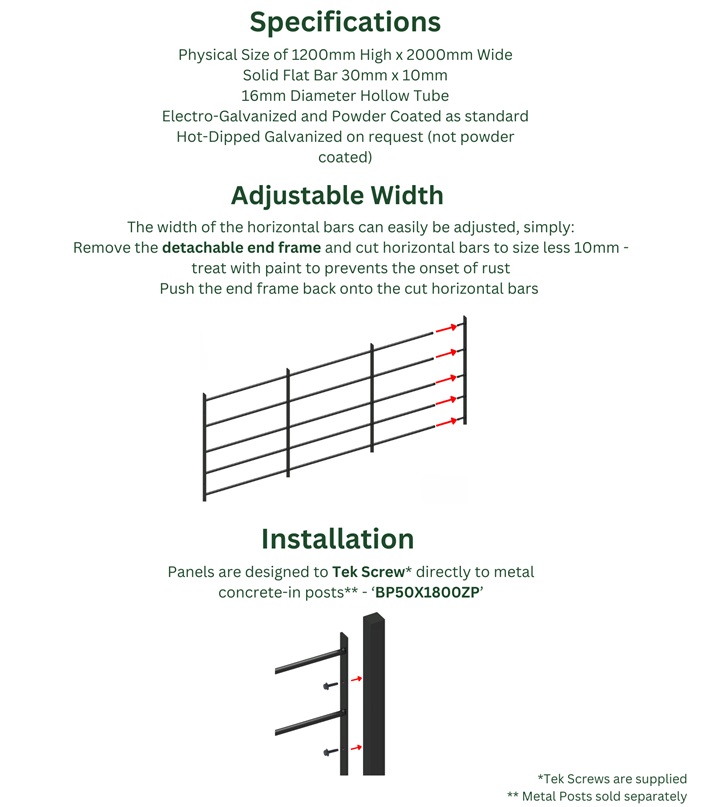

Metal Estate Fencing Specification

• The elegant 5-bar design will blend with any style of property

• Suitable for a wide range of applications.

• Fabricated using 30mm x 10mm flat bar metal frames and hollow 16mm diameter tubing.

• Low maintenance zinc plated and black powder coated paint finish.

• The detachable end section enables easy cutting on-site to ensure the perfect fit to your requirements.

• Suitable for DIY installation.

• Designed to be used in

• Includes Tek screws for connecting to metal posts (sold separately - see below).

Ideal Applications

• Perimeter fencing for farms and estates

• Driveway or entranceway barriers

• Livestock enclosures (non-climbing species)

• Decorative boundaries for gardens or paddocks

• Security fencing for rural and semi-rural properties

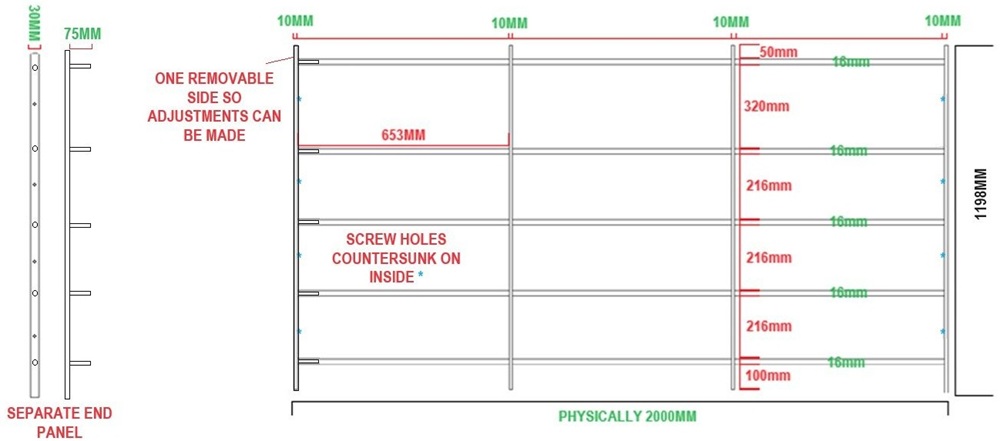

Product Dimensions

• Physical Width (fits opening between posts): 2000mm

• Physical Height (see images for additional dimensions): 1200mm

Ordering Sizes

• Width: The “physical width” measurement is equal to the gap size needed between posts. Unless you need to cut the panels to length before installation, no other calculations are required.

• Height: The “physical height” is measured from the underside to the top of the vertical bars.

Compatible Metal Posts

• Flat Top Universal Square Metal Post (in ground)

• Ball Top Universal Square Metal Post (in ground)

Useful Information About Metal Estate Fence Panels

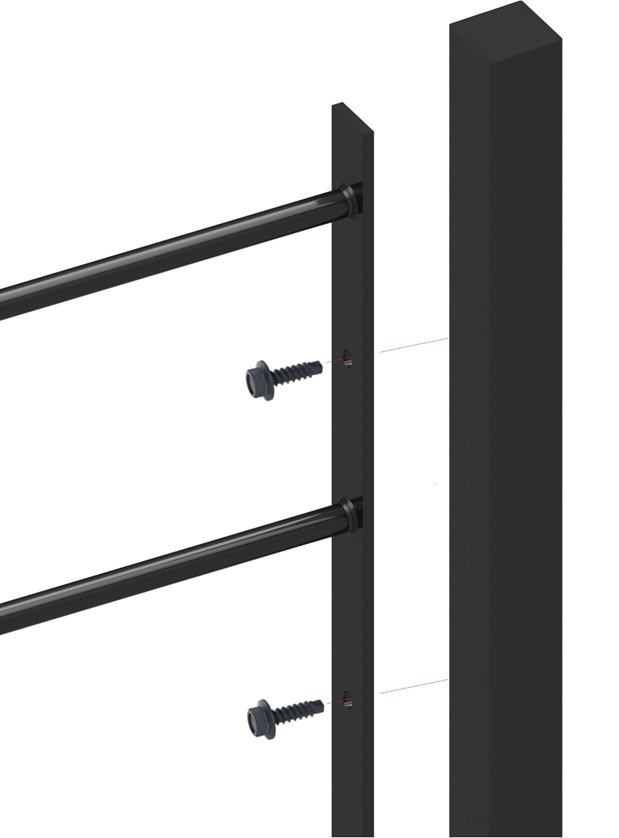

Fittings: We include a fitting pack with each panel. This contains the Tek screws required for mounting to metal posts.

Posts: To ensure a secure and stable fence, all metal posts must be set in the ground to the appropriate depth and be firmly secured with concrete

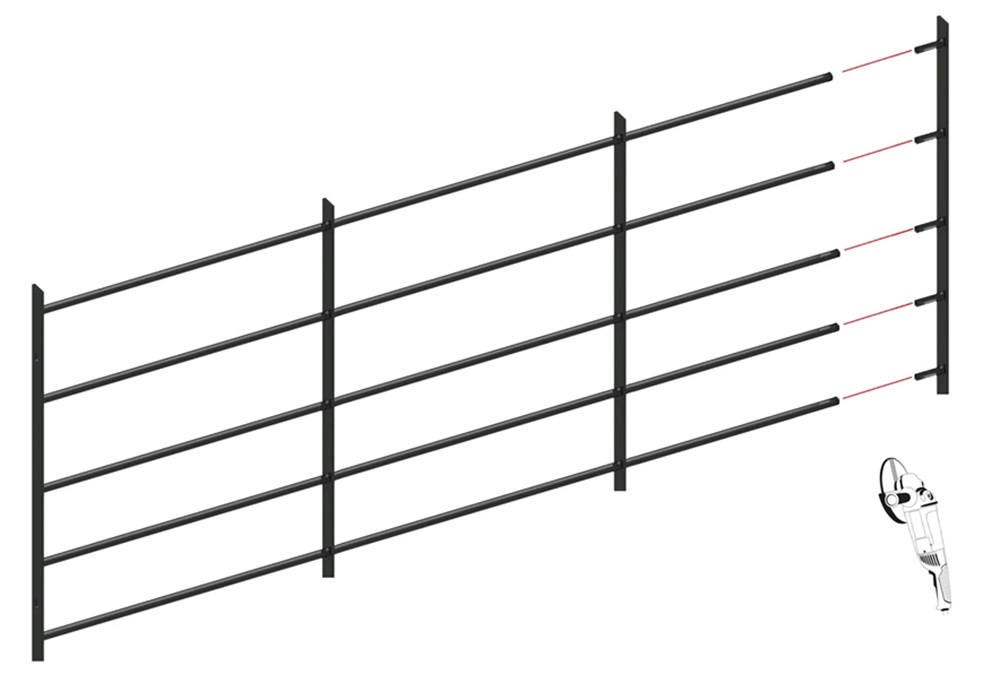

Need to Cut to length? When using this fence panel design, there is no need to specify costly made-to-measure sizes. Just follow the instructions below for the perfect fit every time.

• Detach the end frame from the panel.

• Trim the horizontal bars to the desired width, subtracting 10mm from the total measurement.

• Treat all exposed cut edges with rust-inhibiting paint.

• Slide the end frame back onto the trimmed bars.

• Fasten the panel to the metal posts using the supplied Tek screws.
